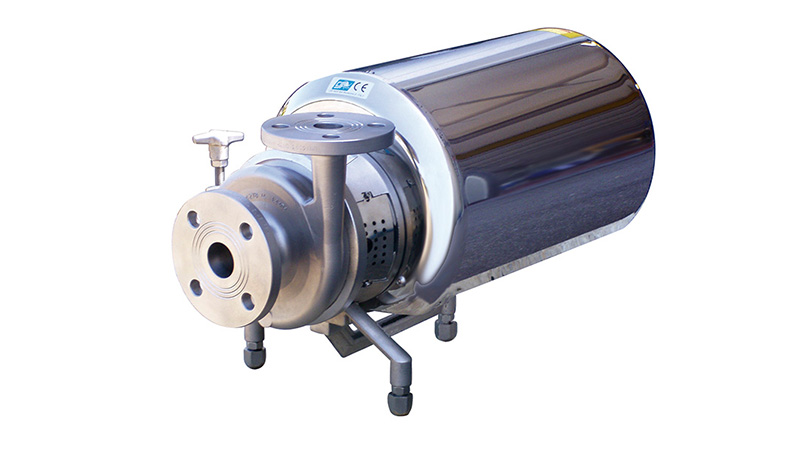

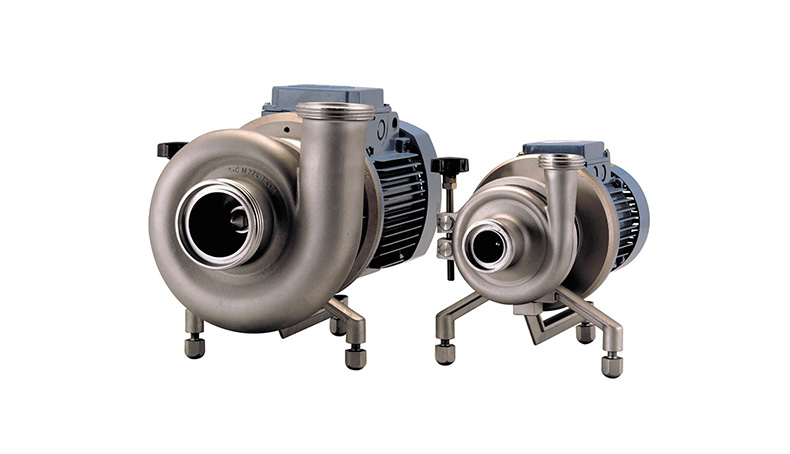

CS/CSA series - Hygienic centrifugal pump
This centrifugal pump is part of a complete, modular range available in a total of 29 different sizes and is adapted for use in the food and pharmaceutical industries, ATEX-rated environments and other demanding environments.
For example, the pump design allows the motor to be replaced while the pump is installed in the piping system, without affecting its tightness. The pumps are equipped with extra internal bearings and minimal tolerances, contributing to a heavy-duty reliable design with higher efficiency and lower noise levels. A unique, self-draining and internally mounted seal provides longer life in applications such as WFI/PW, CIP and solvent.
The pumps are service-friendly. We provide spare parts both as loose parts and as preventive maintenance kits to facilitate maintenance and troubleshooting.

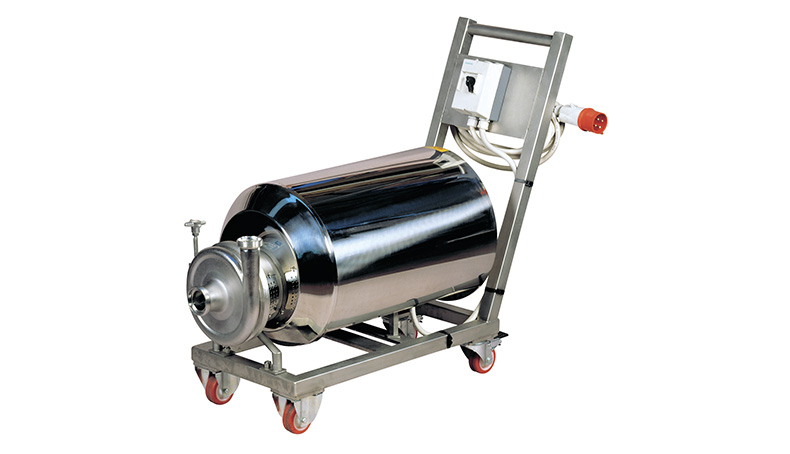

Extensive documentation is available as an option, with certificates and tests simplifying validation and qualification in the food and pharmaceutical industries. There is also a wide range of options and material combinations, including vibration damping feet and ATEX approval. Other options include mobile units with frequency control, inducer for low NPSH, electropolishing and drainage capabilities and more.
- Flows up to 575 m3/h, pressures up to 100 mvp.
- Temperature range: -20 °C ÷ +100 °C. Higher temperatures available on request.
- Material: Wetted parts in AISI 316L acid-proof stainless steel (on request: Super duplex SAF2507, Hastelloy etc.)
- Elastomer in a range of materials such as. Nitrile (NBR), EPDM, FPM/FKM, Silicone, Special high fluorine material XP41, FEP PTFE and Perfluor FFPM - FFKM. Most materials with 1935/2004, FDA/USP6/ADI/Latex-free certificate.
- Connections: DIN - SMS - IDF - BS/RJT - DS - CLAMP and EN1092-1 PN10 flanges suitable for all international standards.
- Hygienic surface finish for Food, Pharmaceutical industry as standard and on request, Electro-polishing Ra. 0.8 or Ra.0.5 micron.
- The CS/A version also complies with EHEDG, 3A.
- There are a number of different options such as protective hoods, machine shoes, double seals, ATEX, Inducer screw, mobile units, drainage TC, frequency converters, etc.
We have a large selection of wear parts for most brands of pumps and valves for hygienic applications.
We offer service and maintenance of pumps to ensure optimal performance and lifetime. Send your pump to us - we'll make sure it works properly.
Related products
-
CL/CLC series - Sanitary centrifugal pump
The CL/CLC series is a sanitary centrifugal pump, ideal for use in the food industry, breweries, CIP processes, cosmetics and simple chemical applications. This model is available in a wide range of variants, with both open and closed impellers. The pumps can be equipped with 2- or 4-pole motors, making it flexible for a variety of applications. The design with hand nuts and clamps makes it easy to disassemble the pump for inspection and cleaning of its internal parts. The wetted parts are made of forged and electropolished stainless steel, AISI 316. Maintenance is simplified by the availability of spare parts in preventive maintenance kits. -

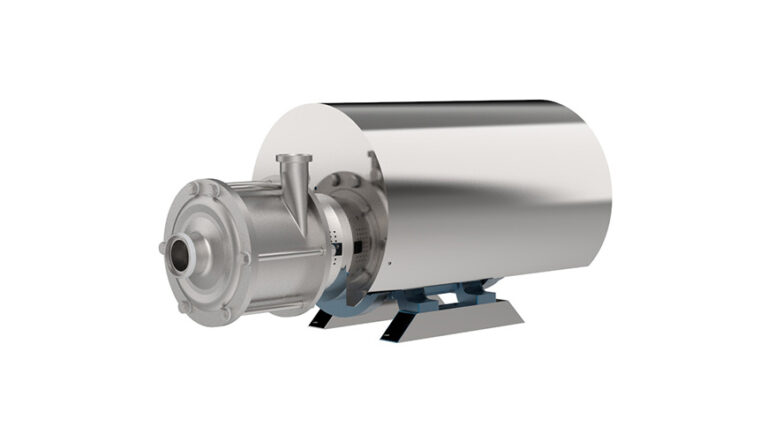

CSM Series - Hygienic multistage centrifugal pump
