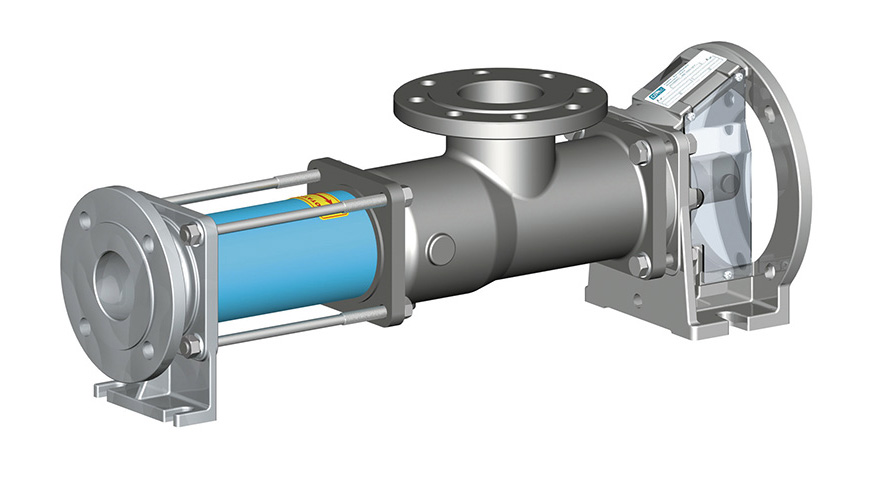

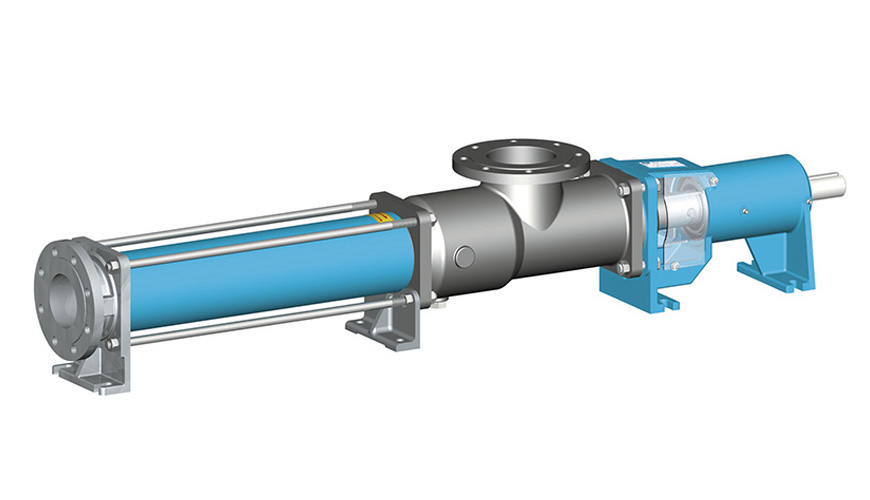

MIE/MIN series - Eccentric screw pump for process/industrial
Eccentric screw pump in a wide range, developed for demanding applications in the process industry. Efficient product handling makes it ideal for use in paper and pulp production, the chemical industry, sludge handling and other demanding environments.
- Can be equipped with several rectangular openings for demanding heavy-duty applications.

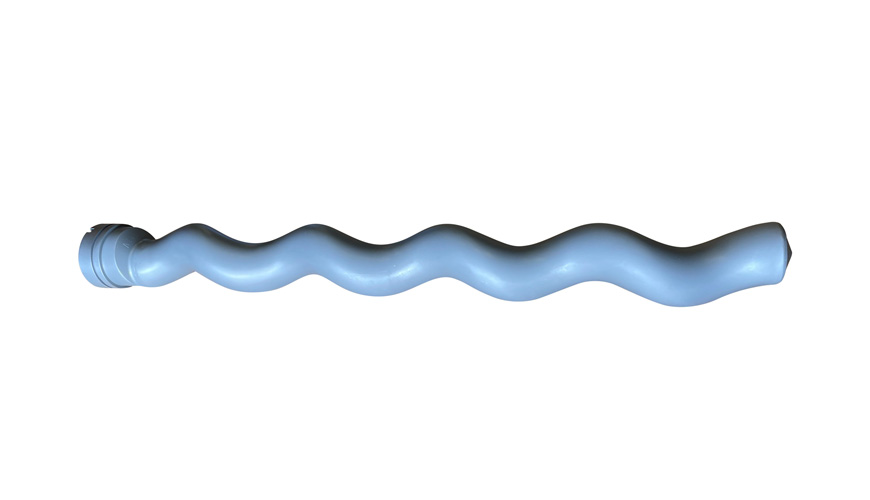

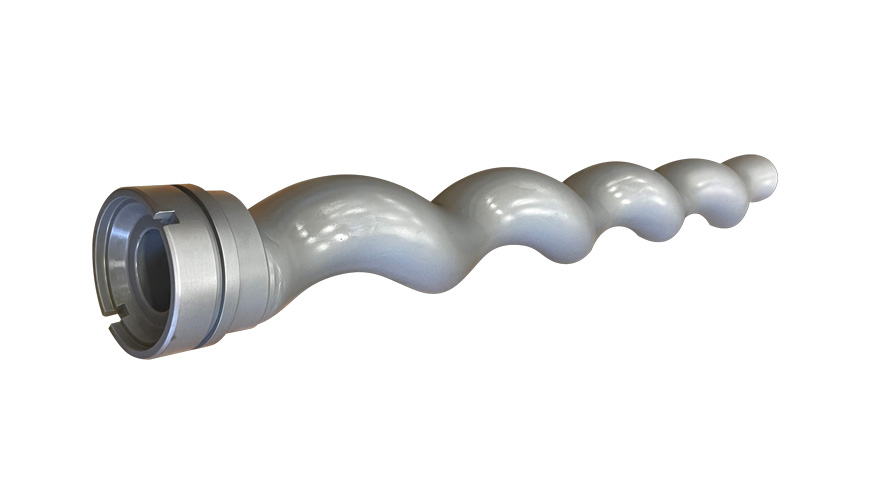

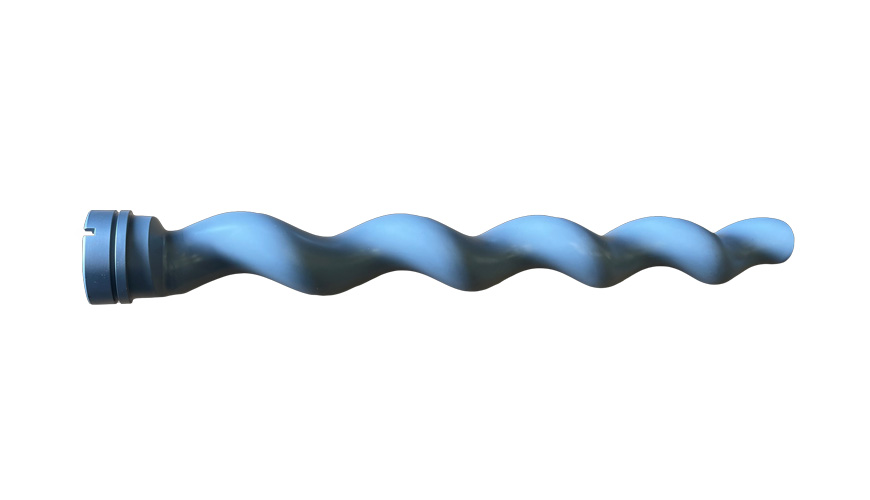

- Optimized rotor and stator geometry, together with unique rotor designs, provide long service life and low operating costs.
- Pulsation-free flow with excellent suction capacity.
- Flows up to: 130 m3/h and pressure up to 24 Bar
- Temperature range: 100 °C
- Material: Wetted parts can be chosen between AISI 304 and 316L
- Stators: GA - NBR black GB - EPDM GD - FKM rubber Fluoroelastomer GE - HYPALON rubber GF - NBR white GG - NATURAL rubber GJ - HYDRO-TREATED NITR. rubber GL - SBR SCA972 GM - EPDM (white rubber)
- Sealing options: Single internal and external mechanical seal, double mechanical seal and cooled stuffing box seals.
- Connections: Flange EN 1092-1 PN16
- A range of options is available: Wide range of materials, finishes and accessories for compact, mobile or fixed installations. ATEX etc.
We have a large selection of wear parts for most brands of pumps and valves for hygienic applications.
We offer service and maintenance of pumps to ensure optimal performance and lifetime. Send your pump to us - we'll make sure it works properly.
