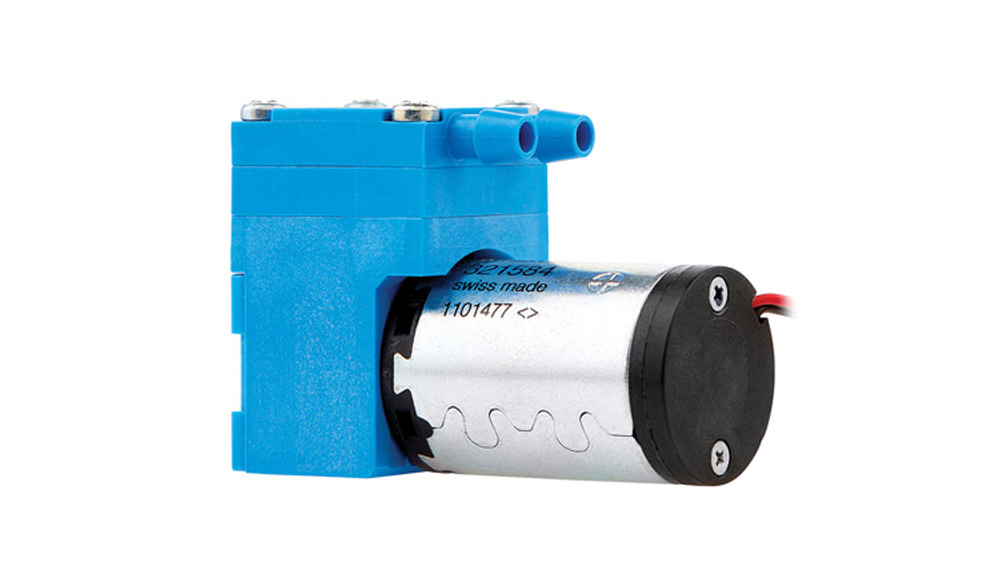

CTS - Miniature diaphragm pump for gas
The CTS series miniature diaphragm pumps combine compact design with high performance. They deliver up to 2.5 slpm in a package only 20 mm wide. The series can be equipped with three different motor configurations to meet specific application, performance and lifetime requirements.
The lightweight and compact design makes CTS pumps ideal for portable and space-critical applications. Parker has also balanced the pumps to minimize noise and vibration, making them particularly suitable for quiet medical environments, such as patient monitoring and wound care.
- Product type: Diaphragm pump
- For liquid type: Air, gas
- Industrial application: Gas analyzers, patient monitoring, compression therapy, negative pressure wound therapy
- Flow rate: 2.5 l/min
- Weight: 48 to 62 g
- Operating pressure: 24 psi, 1.65 bar
- Length: 1.74 to 1.98 inches, 44.2 to 50.2 mm
- Maximum continuous pressure: 24 psi, 1.65 bar
- Width: 0.80 inch, 20.3 mm
- Vacuum pressure-4.9 psi, -508 mm-Hg
- Height: 1.27 inches, 32.2 mm
- Maximum continuous vacuum pressure-4.9 psi, -508 mm-Hg
- Engine type: Iron core brush, core-less brush, bristle-less slotless
- Lifespan: 10 000 hours
- Body material: PSU for polysulfone
- membrane materialEPDM, AEPDM
- Sound level45 dBA
- Operating temperature: 5 to 50 °C
- Patient gas analyzer
- Handheld diagnostics
- Point of Care testing
- CTS Series pumps set the highest standard for service-free life with our advanced, patented diaphragm elastomer.
- The CTS series pumps have a unique, compact and lightweight design that makes them ideal for portable applications.
- Our 100 % oil and grease free pump and compressor design maintains the cleanliness of your system and is widely used in FDA approved systems.
- CTS Series pumps are uniquely balanced to minimize noise and vibration and maximize service life.
- RoHS compliant
- Gas analyzers
- Patient monitoring
- CO₂ monitors
- Compression therapy
- Negative pressure wound therapy
- Surgical instruments
- Medical consumer products
