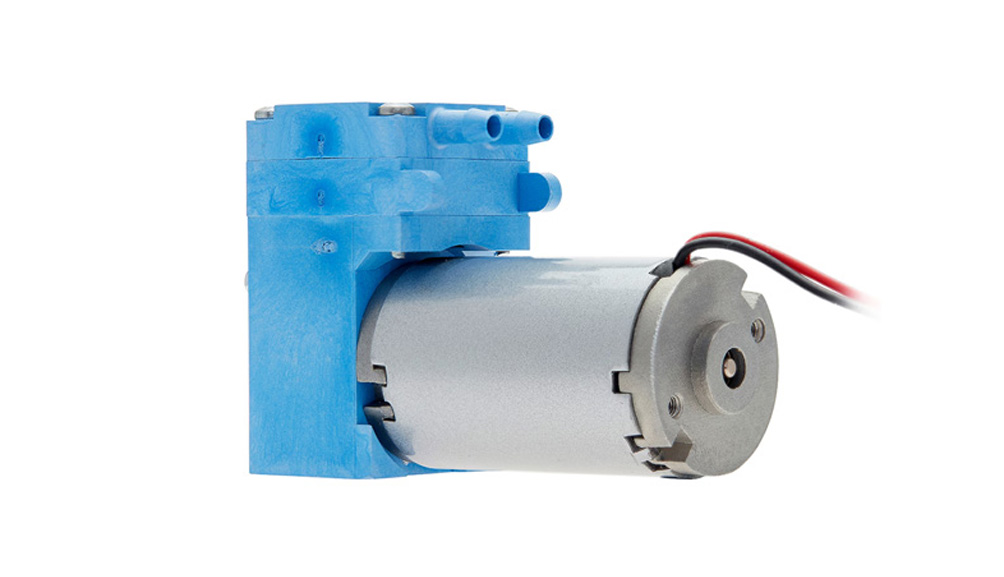

BTC - Single and double head miniature diaphragm pump for gas
The BTC series of miniature diaphragm pumps consists of brushed and brushless DC motor driven models with several configurable component options. This makes them flexible for use in vacuum, pressure or alternating vacuum/pressure applications.
However, the series is not recommended for new constructions, as Parker's BTX-Connect and BTX-Brush series have now replaced BTC.
The new ranges offer lower weight, reduced vibration, extended motor capabilities and improved longevity, making them better suited to modern and demanding applications.
- Engine management options: No control signal (power supply only)
- Weight: 6.5 oz, 184 g, 7.4 oz, 210 g, 8.8 oz, 250 g, 8.0 oz, 227 g, 11.6 oz, 330 g
- Height: 2.14 inches, 54.3 mm, 2.98 inches, 75.7 mm
- Length: 3.05 inches, 77.5 mm, 2.90 inches, 73.5 mm, 3.22 inches, 81.7 mm, 3.37 inches, 85.7 mm, 3.35 inches, 85 mm, 2.48 inches, 73.5 mm
- Width: 1.18 inches, 30 mm
- Lifespan: > 3000 hours, > 10000 hours
- Nominal speed: 4200 RPM, 3900 RPM, 3650 RPM, 3550 RPM, 3400 RPM, 4000 RPM, 3450 RPM, 3350 RPM, 3500 RPM, 3150 RPM, 3100 RPM, 3950 RPM, 3600 RPM, 3700 RPM, 3800 RPM, 3300 RPM, 3200 RPM
- Engine type: Iron core with brush, brushless DC
- Pressure classification: 0 psi, 0 bar, 24 psi, 1.7 bar, 22.5 psi, 1.6 bar, 20 psi, 1.4 bar, 50 psi, 3.4 bar, 25 psi, 1.7 bar, 12 psi, 0.8 bar, 26 psi, 1.8 bar, 19 psi, 1.3 bar, 22 psi, 1.5 bar, 21 psi, 1.4 bar, 16 psi, 1.1 bar, 10 psi, 0.7 bar, 18 psi, 1.2 bar
- Vacuum pressure: -20 inch-Hg, -508 mm-Hg, 0 inch-Hg, 0 mm-Hg, -21 inch-Hg, -533.4 mm-Hg, -16 inch-Hg, -406.4 mm-Hg, -24 inch-Hg, -609.6 mm-Hg, -18 inch-Hg, -457.2 mm-Hg, -26 inch-Hg, -660.4 mm-Hg, -15 inch-Hg, -381 mm-Hg, -12 inch-Hg, -304.8 mm-Hg
- Body materialVectra LCP
- membrane materialEPDM
- Tube type: None, parallel pipe connection, series connection
- Clinical diagnostics
- Analytical chemistry
- Respiratory system
- Patient treatment
- Air quality measurement
- Scent marketing
- Up to 11 l/min
- Low cost brush motor and long life brushless motor available
- Best in class high efficiency slotless BLDC option
- Point of Care diagnostics
- Negative pressure wound therapy
- Compression therapy
- Medical simulation
- Scent dispersion
- Prevention of DVT
- Digital inkjet printer
- In vitro diagnostics
