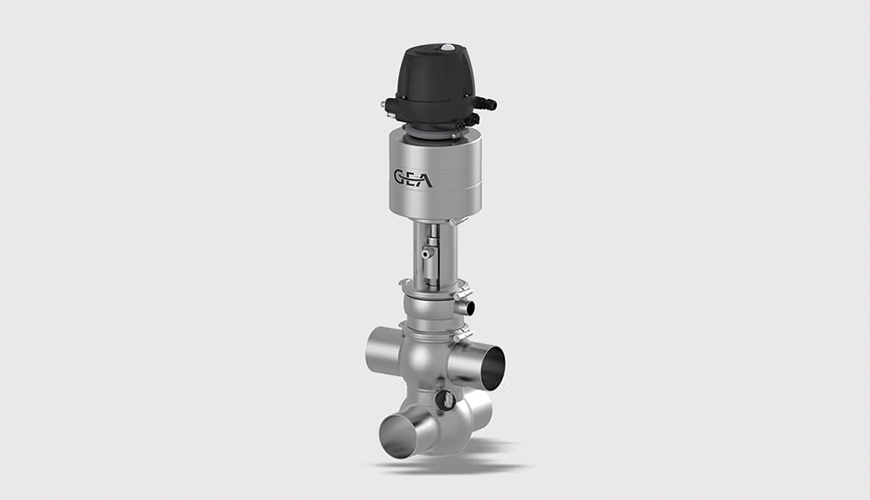

VARIVENT® Mixproof shut-off valves, piggable

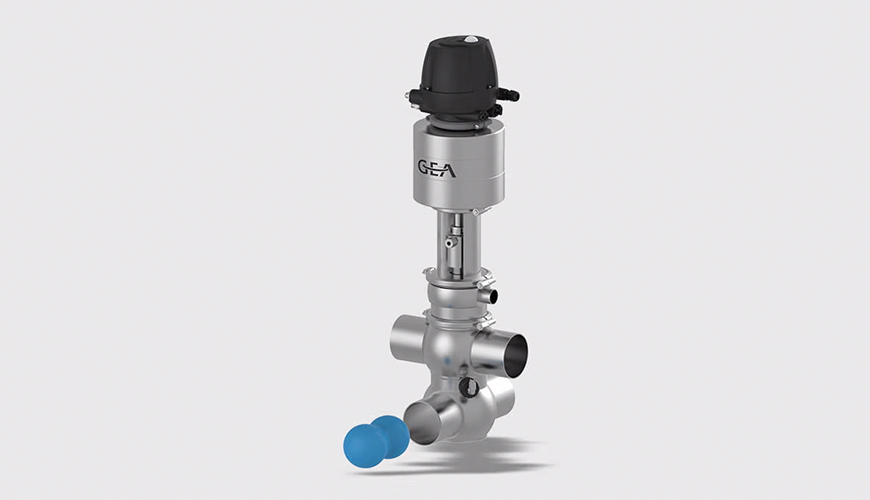

A special feature of this valve is that the pig can be conveyed through the cylindrical design of the housing. Pigging technology enables valuable products to be recovered at the end of the process step, thereby minimizing product residues in the pipe.
VARIVENT® L. Please refer to the catalog for more information.
Technical Data of the Standard Version

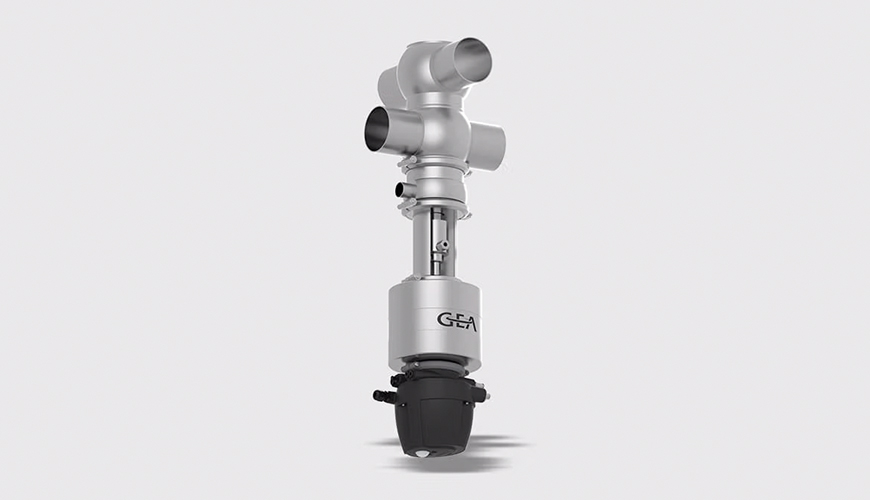

| Type L_H, Piggable Upside Down |
Type L_H, Piggable Upside Down |
|
| Material in contact with the product | 1.4404 / AISI 316 L | |
| Material not in contact with the product | 1.4301 / AISI 304 | |
| Seal material in contact with the product | EPDM, FKM, HNBR | |
| Ambient temperature | 0 to 45 °C | |
| Air supply pressure | 6 bar (87 psi) | |
| Product pressure | 5 bar (73 psi) | |
| Surface in contact with the product | Ra ≤ 0.8 μm | |
| External housing surface | Matte blasted | |
| Control and feedback system | Connection 0 (without control top) | |
| Actuator type | Pneumatic actuator air / spring | |
| Connection fittings | Welding end | |
| Identification | Adhesive ID tag | |
| Valve seat version | Welded seat ring | |
| Certificates | 3-A, CE |
| DN 40 - DN 100 |
|
OD 1,5″ - OD 4″ |
