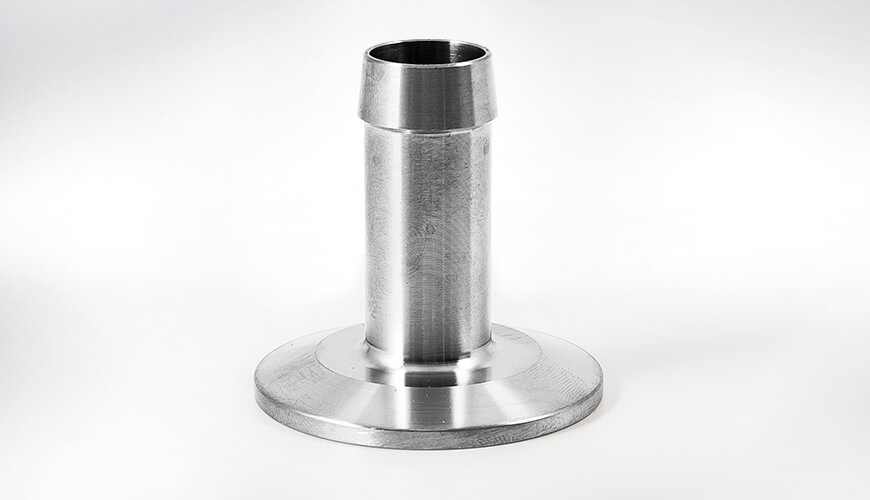

TC hose sleeve standing

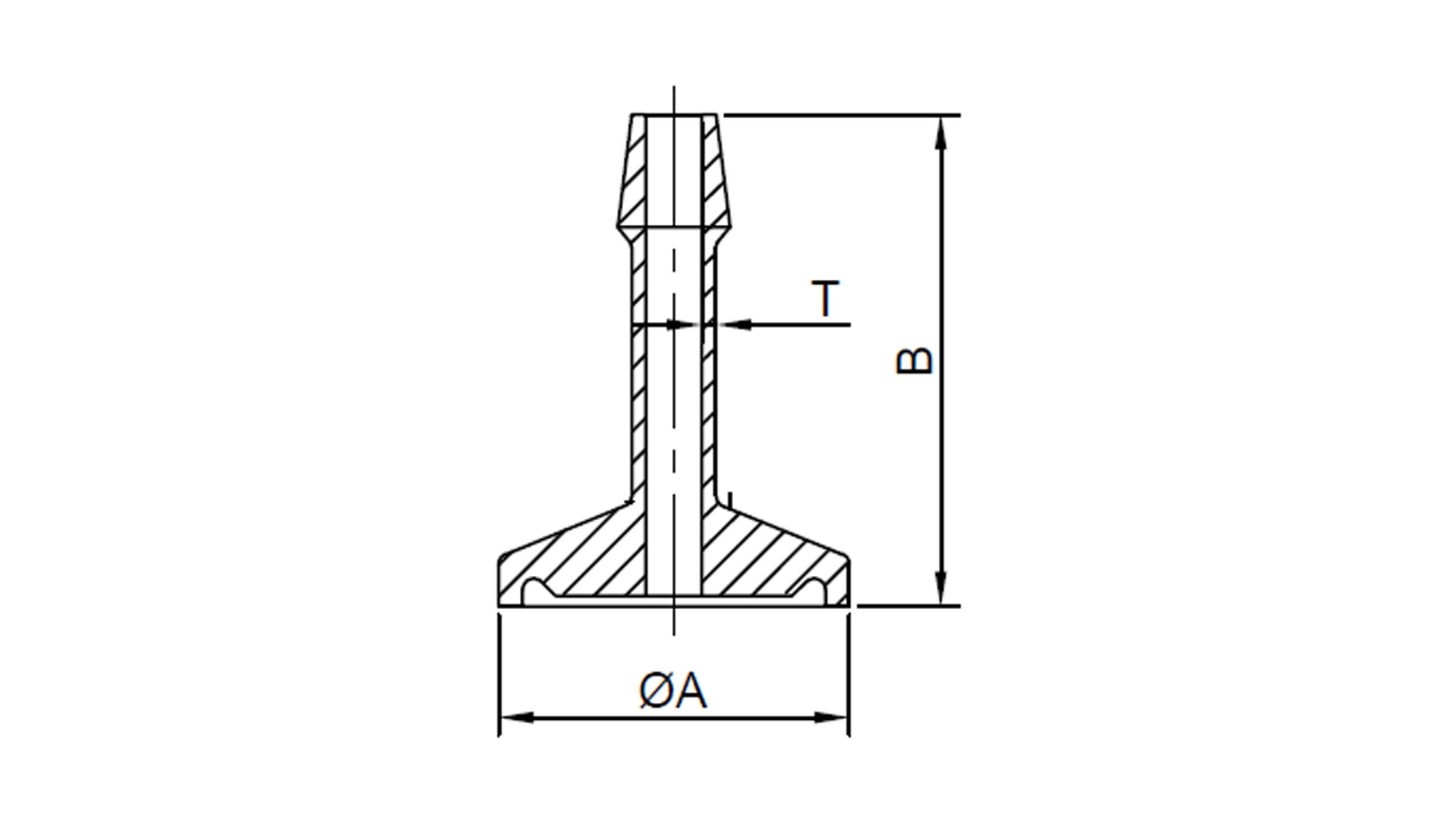

TC hose sleeve sms drawing

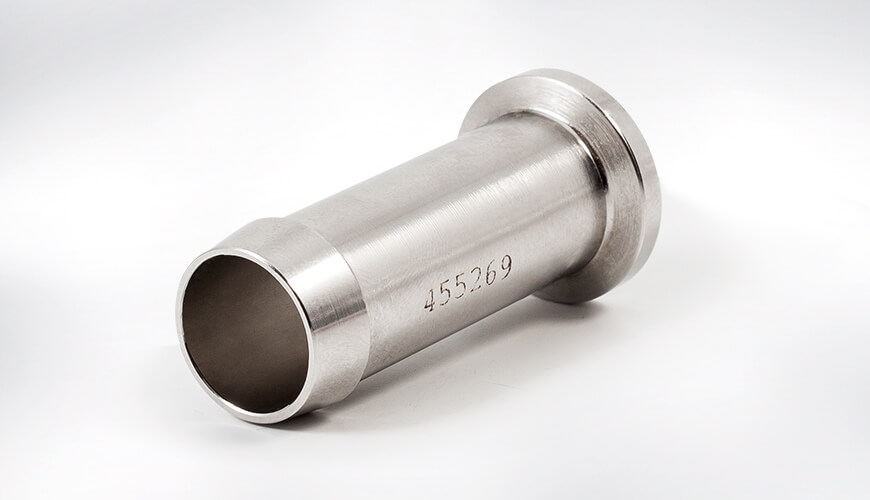

TC hose sleeve

1/3

TC couplings
Article Number: TC hose barb SMS

TC hose barb SMS

Our TC hose sleeves are manufactured to SMS standards and are used in the pharmaceutical, food, cosmetic and chemical-technical industries.

Available with internal surface roughness of Ra 0.8 (S) and Ra 0,5 (SSE). Lower Ra values are available on request.

All sizes in the table below are in mm.

See variations (22)
Product Overview
Product specification
Dimensional standard
SMS TEXT MESSAGES
SMS (Swedish Manufacturing Standard) Swedish standard mainly used in the food and dairy industry. SMS dimensions are easy to assemble and disassemble, which facilitates cleaning and maintenance.
Article Number Dimension mm T A B Execution Material Availability Price
022-24-102S 102 2 119 97.6 Ra 0,8 µm Stainless steel 316L Login to see availability and prices
022-24-102SSE 102 2 119 97.6 Ra 0,5 µm electropolished Stainless steel 316L Login to see availability and prices
022-24-18S 18 1 25.4 16 Ra 0,8 µm Stainless steel 316L Login to see availability and prices
022-24-18SSE 18 1 25.4 16 Ra 0,5 µm electropolished Stainless steel 316L Login to see availability and prices
022-24-25S 25 1.2 50.5 22.6 Ra 0,8 µm Stainless steel 316L Login to see availability and prices
022-24-25SSE 25 1.2 50.5 22.6 Ra 0,5 µm electropolished Stainless steel 316L Login to see availability and prices
022-24-32S 32 1.2 50.5 29.6 Ra 0,8 µm Stainless steel 316L Login to see availability and prices
022-24-32SSE 32 1.2 50.5 29.6 Ra 0,5 µm electropolished Stainless steel 316L Login to see availability and prices
022-24-38S 38 1.2 50.5 35.6 Ra 0,8 µm Stainless steel 316L Login to see availability and prices
022-24-38SSE 38 1.2 50.5 35.6 Ra 0,5 µm electropolished Stainless steel 316L Login to see availability and prices
022-24-51S 51 1.2 64 48.6 Ra 0,8 µm Stainless steel 316L Login to see availability and prices
022-24-51SSE 51 1.2 64 48.6 Ra 0,5 µm electropolished Stainless steel 316L Login to see availability and prices
022-24-63S 63 1.6 77 60.3 Ra 0,8 µm Stainless steel 316L Login to see availability and prices
022-24-63SSE 63 1.6 77 60.3 Ra 0,5 µm electropolished Stainless steel 316L Login to see availability and prices
022-24-76S 76 1.6 91 72.9 Ra 0,8 µm Stainless steel 316L Login to see availability and prices
022-24-76SSE 76 1.6 91 72.9 Ra 0,5 µm electropolished Stainless steel 316L Login to see availability and prices
022-24-MM12S 12 1 25.4 10 Ra 0,8 µm Stainless steel 316L Login to see availability and prices
022-24-MM12SSE 12 1 25.4 10 Ra 0,5 µm electropolished Stainless steel 316L Login to see availability and prices
022-24-MM14S 14 1 25.4 12 Ra 0,8 µm Stainless steel 316L Login to see availability and prices
022-24-MM14SSE 14 1 25.4 10 Ra 0,5 µm electropolished Stainless steel 316L Login to see availability and prices
022-24-MM16S 16 1 25.4 14 Ra 0,8 µm Stainless steel 316L Login to see availability and prices
022-24-MM16SSE 16 1 25.4 14 Ra 0,5 µm electropolished Stainless steel 316L Login to see availability and prices
