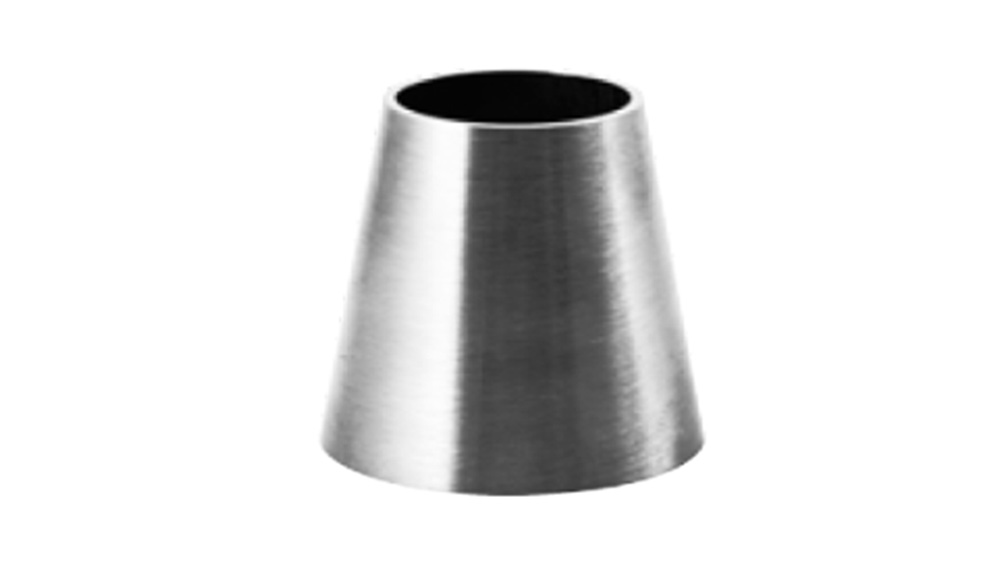

Cone concentric ASME BPE
Hygienic concentric cone in stainless steel according to ASME BPE standard. It is used in the pharmaceutical, food, cosmetics and chemical-technical industries where high demands are placed on hygiene and quality.
The reducers are available with an internal surface roughness of Ra 0.51 µm (SF1) or Ra 0,38 µm (SF4).

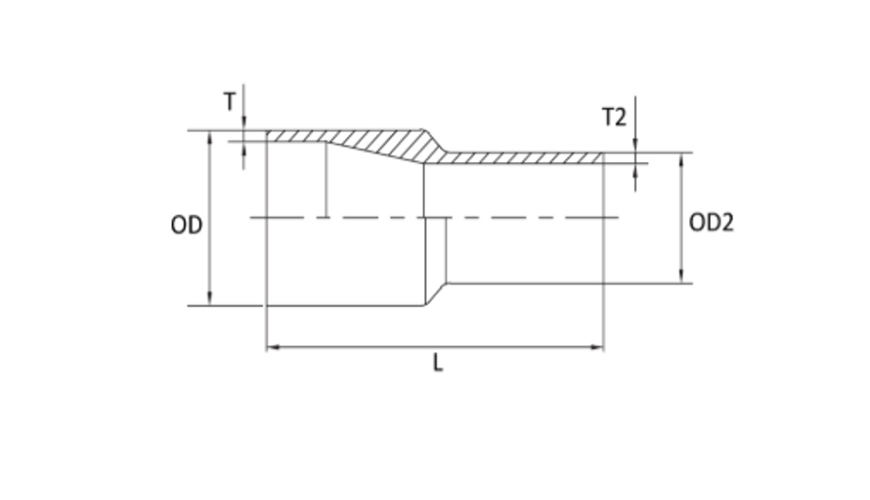

All sizes in the table below are in mm.
Dimensional standard
ASME BPE
ASME BPE is an American standard developed for the biotechnology and pharmaceutical industries, where hygiene, cleanliness and documentation requirements are very high. ASME BPE fittings meet strict surface finish and traceability requirements and are designed to minimize the risk of contamination.
The standard ensures designs that facilitate efficient cleaning and validation, making ASME BPE components particularly suitable for critical processes in bio and pharmaceutical production.
| Article Number | Dimension mm | T/T2 | L | Execution | Material | Availability | Price | Add to cart |
|---|---|---|---|---|---|---|---|---|
| 011-27-BPE102X51-SF1 | 101.60x50,80 | 2,11/1,65 | 130.18 | Ra 0,51 µm | Stainless steel 316 | Login to see availability and prices | ||
| 011-27-BPE102X51-SF4 | 101.60x50,80 | 2,11/1,65 | 130.18 | Ra 0,38 µm | Stainless steel 316 | Login to see availability and prices | ||
| 011-27-BPE102X63-SF1 | 101.60x63,50 | 2,11/1,65 | 107.95 | Ra 0,51 µm | Stainless steel 316 | Login to see availability and prices | ||
| 011-27-BPE102X63-SF4 | 101.60x63,50 | 2,11/1,65 | 107.95 | Ra 0,38 µm | Stainless steel 316 | Login to see availability and prices | ||
| 011-27-BPE102X76-SF1 | 101.60x76,20 | 2,11/1,65 | 98.43 | Ra 0,51 µm | Stainless steel 316 | Login to see availability and prices | ||
| 011-27-BPE102X76-SF4 | 101.60x76,20 | 2,11/1,65 | 98.43 | Ra 0,38 µm | Stainless steel 316 | Login to see availability and prices | ||
| 011-27-BPE20X15-SF1 | 19,05x12,70 | 1.65 | 53.98 | Ra 0,38 µm | Stainless steel 316 | Login to see availability and prices | ||
| 011-27-BPE20X15-SF4 | 19,05x12,70 | 1.65 | 53.98 | Ra 0,51 µm | Stainless steel 316 | Login to see availability and prices | ||
| 011-27-BPE25X15-SF1 | 25,40x12,70 | 1.65 | 63.5 | Ra 0,38 µm | Stainless steel 316 | Login to see availability and prices | ||
| 011-27-BPE25X15-SF4 | 25,40x12,70 | 1.65 | 63.5 | Ra 0,51 µm | Stainless steel 316 | Login to see availability and prices | ||
| 011-27-BPE25X20-SF1 | 25,40x19,05 | 1.65 | 53.98 | Ra 0,38 µm | Stainless steel 316 | Login to see availability and prices | ||
| 011-27-BPE25X20-SF4 | 25,40x19,05 | 1.65 | 53.98 | Ra 0,51 µm | Stainless steel 316 | Login to see availability and prices | ||
| 011-27-BPE38X20-SF1 | 38,10x19,05 | 1.65 | 76.2 | Ra 0,38 µm | Stainless steel 316 | Login to see availability and prices | ||
| 011-27-BPE38X20-SF4 | 38,10x19,05 | 1.65 | 76.2 | Ra 0,51 µm | Stainless steel 316 | Login to see availability and prices | ||
| 011-27-BPE51X25-SF1 | 50,80x25,40 | 1.65 | 85.73 | Ra 0,38 µm | Stainless steel 316 | Login to see availability and prices | ||
| 011-27-BPE51X25-SF4 | 50,80x25,40 | 1.65 | 85.73 | Ra 0,51 µm | Stainless steel 316 | Login to see availability and prices | ||
| 011-27-BPE51X38-SF1 | 50,80x38,10 | 1.65 | 63.5 | Ra 0,51 µm | Stainless steel 316 | Login to see availability and prices | ||
| 011-27-BPE51X38-SF4 | 50,80x38,10 | 1.65 | 63.5 | Ra 0,38 µm | Stainless steel 316 | Login to see availability and prices | ||
| 011-27-BPE63X38-SF1 | 63,50x38,10 | 1.65 | 85.73 | Ra 0,51 µm | Stainless steel 316 | Login to see availability and prices | ||
| 011-27-BPE63X38-SF4 | 63,50x38,10 | 1.65 | 85.73 | Ra 0,38 µm | Stainless steel 316 | Login to see availability and prices | ||
| 011-27-BPE63X51-SF1 | 63,50x50,80 | 1.65 | 63.5 | Ra 0,51 µm | Stainless steel 316 | Login to see availability and prices | ||
| 011-27-BPE63X51-SF4 | 63,50x50,80 | 1.65 | 63.5 | Ra 0,38 µm | Stainless steel 316 | Login to see availability and prices | ||
| 011-27-BPE76X38-SF1 | 76,20x38,10 | 1.65 | 107.95 | Ra 0,51 µm | Stainless steel 316 | Login to see availability and prices | ||
| 011-27-BPE76X38-SF4 | 76,20x38,10 | 1.65 | 107.95 | Ra 0,38 µm | Stainless steel 316 | Login to see availability and prices | ||
| 011-27-BPE76X63-SF1 | 76,20x63,50 | 1.65 | 66.68 | Ra 0,51 µm | Stainless steel 316 | Login to see availability and prices | ||
| 011-27-BPE76X63-SF4 | 76,20x63,50 | 1.65 | 66.68 | Ra 0,38 µm | Stainless steel 316 | Login to see availability and prices | ||
| Cone concentric ASME BPE | 76,20x50,80 | 1.65 | 85.73 | Ra 0,51 µm | Stainless steel 316 | Login to see availability and prices | ||
| Cone concentric ASME BPE | 76,20x50,80 | 1.65 | 85.73 | Ra 0,38 µm | Stainless steel 316 | Login to see availability and prices | ||
| Cone concentric ASME BPE | 38,10x25,40 | 1.65 | 63.5 | Ra 0,38 µm | Stainless steel 316 | Login to see availability and prices | ||
| Cone concentric ASME BPE | 38,10x25,40 | 1.65 | 63.5 | Ra 0,51 µm | Stainless steel 316 | Login to see availability and prices | ||
