Cross tube
Stainless steel T-pipes
Article Number: Cross tube SMS

Cross tube SMS

Our hygienic cross tubes are manufactured to SMS standards and are used in process environments in the pharmaceutical, food, cosmetic and chemical-technical industries.

Available with internal surface roughness of Ra 0.8 (S) and Ra 0,5 (SSE). Lower Ra values are available on request.

All sizes in the table below are in mm.

See variations (12)
Product Overview
Product specification
  • Standards according to: SMS 3008, Certificate EN 10204/3.1
  • Dimensions: SMS = 25.0 - 101.6 mm
Dimensional standard
SMS TEXT MESSAGES
SMS (Swedish Manufacturing Standard) Swedish standard mainly used in the food and dairy industry. SMS dimensions are easy to assemble and disassemble, which facilitates cleaning and maintenance.

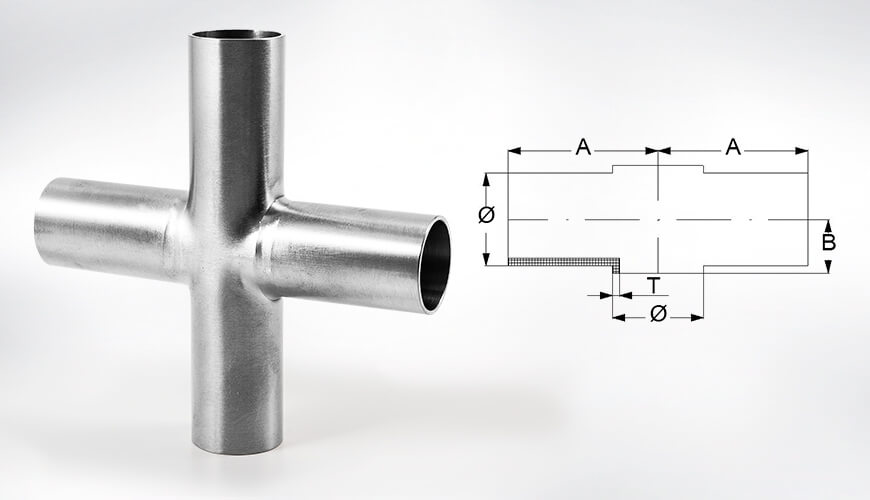

Article Number Dimension mm Ø T A Execution Availability Price
46-01-102S 101.6 102 2 174 Ra 0,8 µm Login to see availability and prices
46-01-102SSE 101.6 102 2 174 Ra 0,5 µm electropolished Login to see availability and prices
46-01-25S 25 25 1.2 44 Ra 0,8 µm Login to see availability and prices
46-01-25SSE 25 25 1.2 44 Ra 0,5 µm electropolished Login to see availability and prices
46-01-38S 38 38 1.2 64 Ra 0,8 µm Login to see availability and prices
46-01-38SSE 38 38 1.2 64 Ra 0,5 µm electropolished Login to see availability and prices
46-01-51S 51 51 1.2 89 Ra 0,8 µm Login to see availability and prices
46-01-51SSE 51 51 1.2 89 Ra 0,5 µm electropolished Login to see availability and prices
46-01-63S 63.5 63.5 1.6 114 Ra 0,8 µm Login to see availability and prices
46-01-63SSE 63.5 63.5 1.6 114 Ra 0,5 µm electropolished Login to see availability and prices
46-01-76S 76 76.1 1.6 134 Ra 0,8 µm Login to see availability and prices
46-01-76SSE 76 76.1 1.6 134 Ra 0,5 µm electropolished Login to see availability and prices
