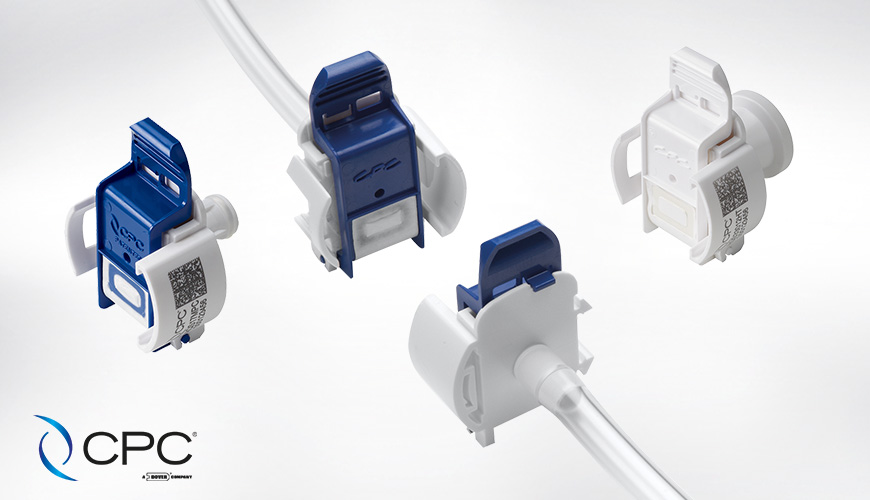

ASEPTIQUIK® S aseptic sterile connectors

• Pressure: Up to 4.1 bar, 60 psi
• Temperature: 4°C to 40°C (39°F to 104°F)
• Typical flow rate: Cv 1.74 for ¼” to ¼” and 0.19 for ⅛” to ⅛”
• Main components: Polycarbonate (white), USP class VI, ADCF
• Pull tabs/covers: Polycarbonate (blue, standard version), USP class VI, ADCF
• Polycarbonate (white, HT version), USP class VI, ADCF
• Seals: Silicone (clear), platinum cured, USP class VI, ADCF
• Membrane: Polyethylene (standard version), USP class VI, ADCF
• Hydrophobic polyethersulfone (HT version), USP class VI

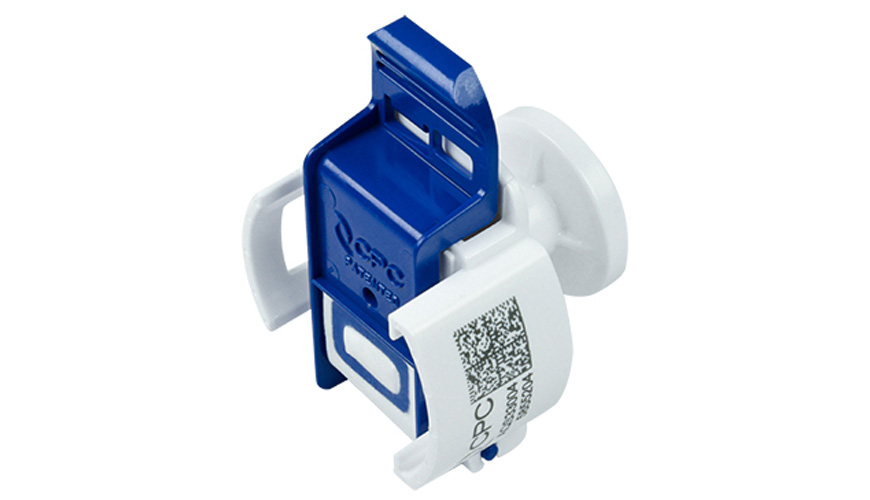

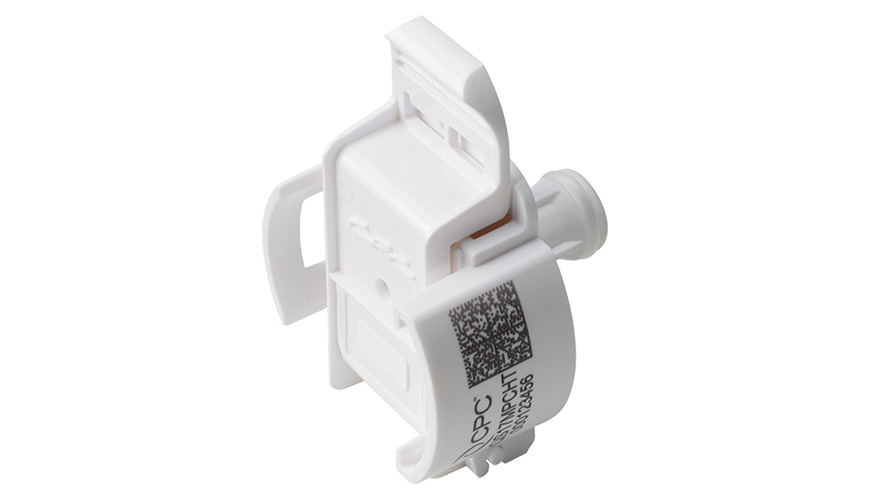

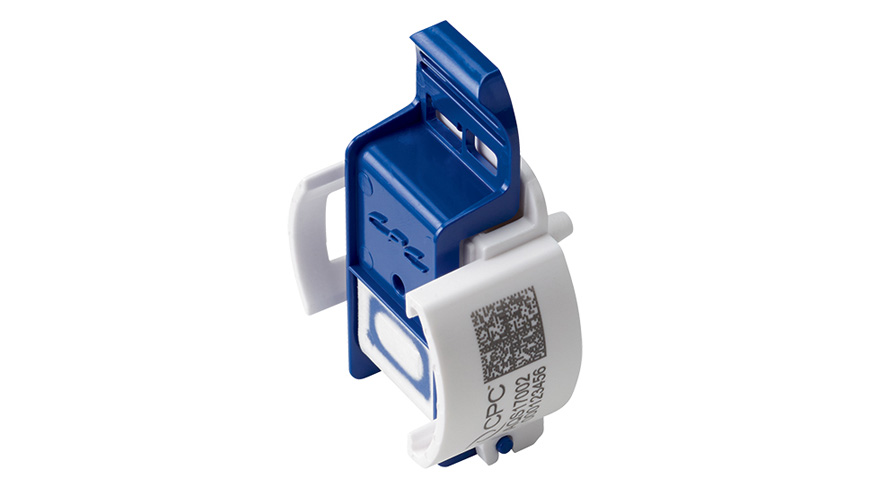

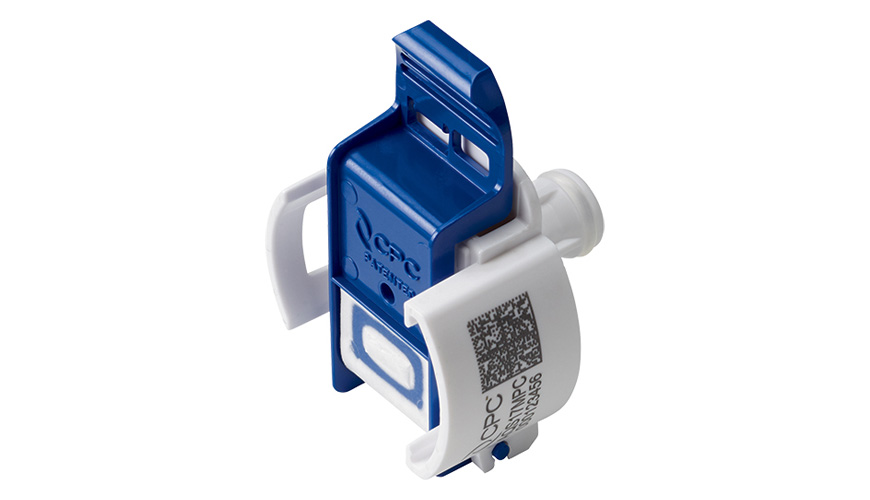

• Connection size: ⅛”, ¼” and ⅜” ID hose barb (3.2mm, 6.4mm and 9.5mm), ¾” sanitary and MPC insert
• Gamma sterilization: Up to 50 kGy irradiation

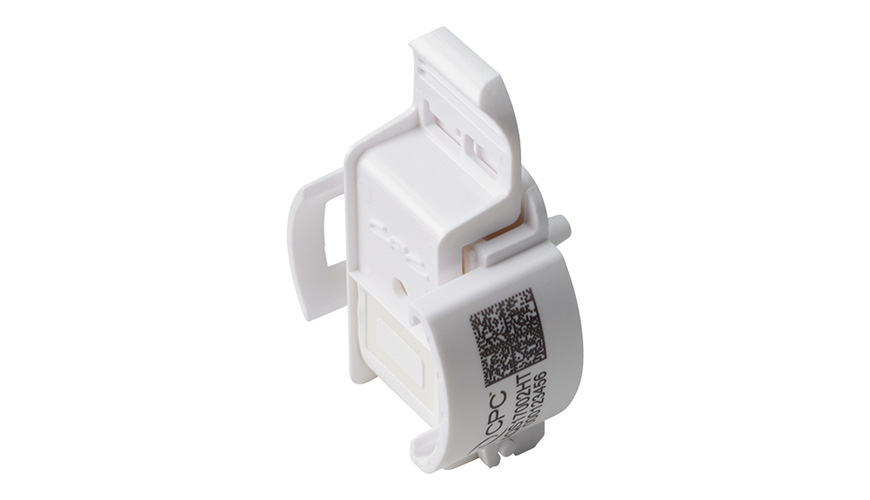

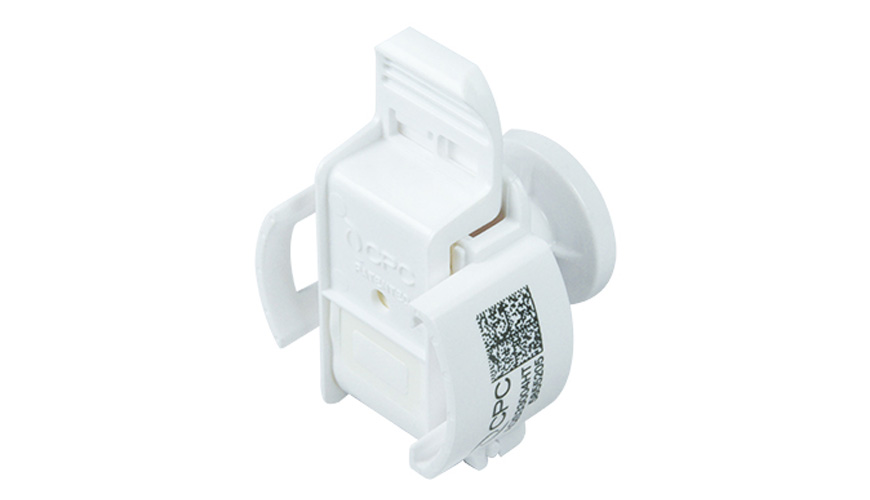

• Autoclave Sterilization: High Temperature (HT) Version: Up to 266°F (130°C) for 30 minutes

• Gender-neutral design to facilitate specifications for single-use systems with one part number for both parts
• FLIP-CLICK-PULL - Intuitive three-step connection process that reduces the risk of user error
• Integrated draft shields - Protective caps act as protective casing, reducing part complexity and ensuring simultaneous removal of both membranes
• Robust design that enables repeated and reliable performance without the need for additional hardware
• CPC “Click” ger hörbar bekräftelse på att monteringen är korrekt
