Magnetic drive pumps

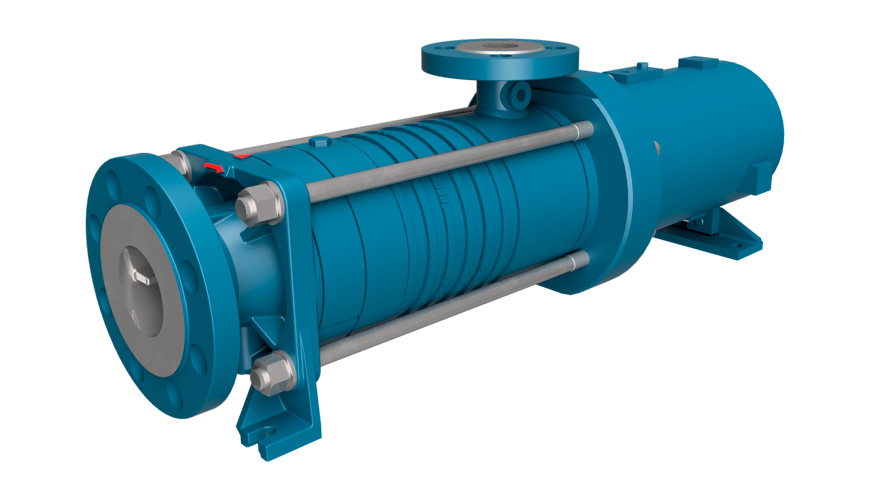

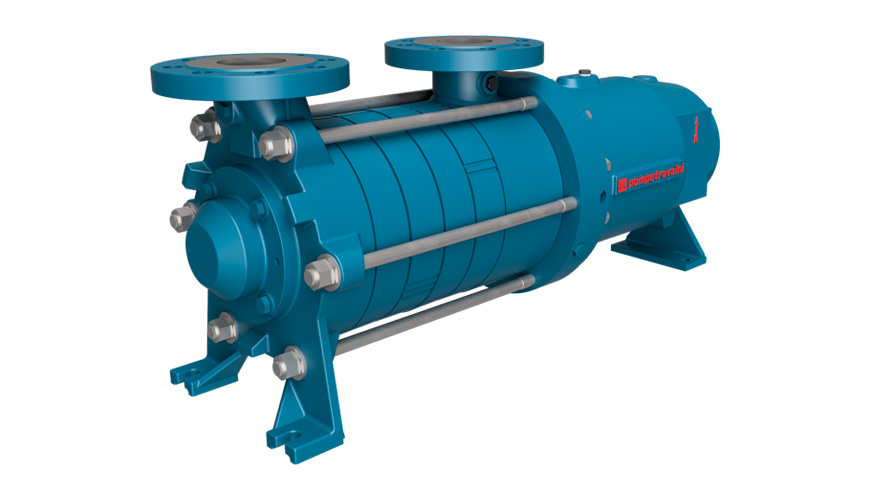

TBK/TBAK series - Magnetic drive centrifugal / side channel pump

The TBK/TBAK is an evolution of the standard TBH/TBA model where safety requires magnetic operation to handle and secure hazardous fluids. It has the same hydraulic characteristics with its high efficiency at low flows with high pressures.

These pumps reach a very low NPSH value making them particularly suitable for pumping liquids close to the boiling point and in difficult conditions. The special design ensures the pumping of liquids containing gases and in particular liquid gases.

Pompetravaini
Request offer
Product Overview
Features and benefits
  • The model offers arrangements for controlling the temperature of the magnetic coupling and pump vibrations.
  • Strong magnetic coupling in SmCo (Samarium - Cobalt).
  • Silicon carbide inner bearings.
  • The pump has a self-priming feature which allows it to lift the liquid 8.5 mvp.
  • All other performance, design and application characteristics of the TBH series are maintained in this series of pumps. This ensures high modularity and interchangeability.
Specifications
  • Flows up to 35 m3/h and pressures up to 35 Bar.
  • Temperature range: 300 °C (Material/application dependent)
  • Materials: Wetted parts are available in Cast Iron/Stainless Iron and AISI 316L (special materials on request).
  • Robust magnetic coupling CoSa (Samarium/Cobalt).
  • Sliding bearing SIC
  • Connection: UNI 2223-2229 PN25
  • Available in a range of options: PT-100 sensor, ATEX etc.
