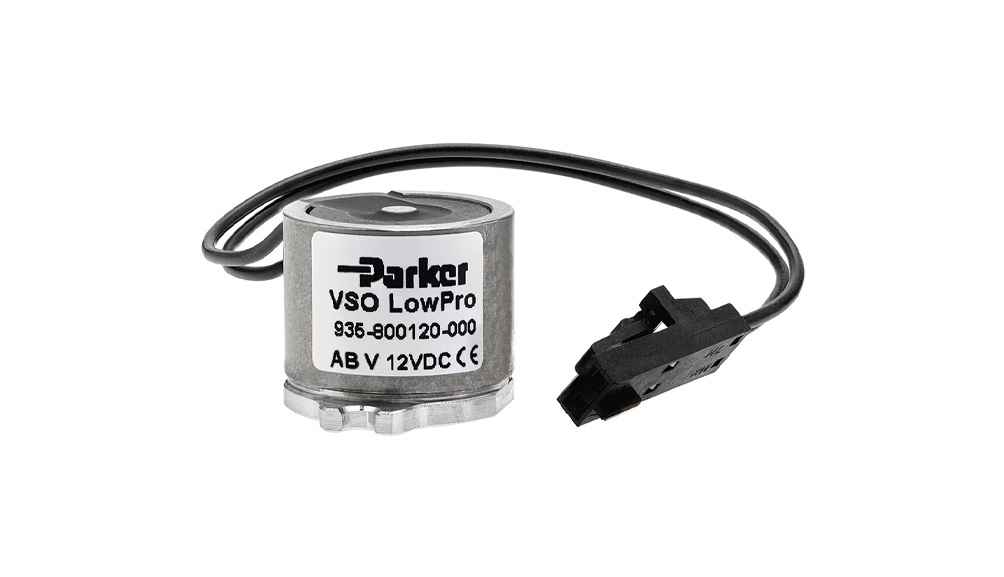

VSO® LowPro - Proportional miniature valve
The VSO® LowPro is a miniature proportional valve that regulates the flow rate of inert gases at pressures up to 100 PSIG (6.9 bar). Typical flow rates up to 57 SLPM with a typical power requirement of 1 watt at room temperature.
With a width of only 16 mm and a height of 14 mm, the valve can be mounted in the smallest portable devices. This improves performance, size and weight.
The valve has orifice sizes from 0.030 inch (0.76 mm) up to 0.080 inch (2.03 mm). It weighs only 12 g.
Despite this, VSO® LowPro can perform the same function as valves three times its size, without compromising on performance. The assembly requires only a simple, machined manifold.
- Flow rate: Up to 57 SLPM
- Maximum flow rate: 57 SLPM
- Vacuum to pressure range: 27 in Hg to pressure limit, 686 mm Hg to pressure limit
- Maximum working pressure: 100 psi, 6.9 bar
- Nozzle size (orifice): 0.030, 0.040, 0.050, 0.080 inches / 0.76, 1.02, 1.27, 2.03 mm
- Maximum operating temperature: 131 °F, 55 °C
- Minimum operating temperature: 32 °F, 0 °C
- Function: 2-way, normally closed (NC)
- Life cycles: 100 million
- Actuation type: Solenoid
- Type of operation: Electronic
- Control method: Current or voltage
- Power consumption: 1.0 W typical, 2.0 W max
- Tension: 5, 12, 24 VDC
- Electrical connection: 4.5″ cable connections
- Housing materials: Stainless steel 400 series
- Sealing material: FKM
- Length: 0.80 inch, 20 mm
- Width: 0.63 inches, 16 mm
- Height: 0.55 inches, 14 mm
- Weight: 0.42 oz, 12 g
- Response time: 10 ms typical
- Leakage rate: < 0.5 sccm air
- Installation type: Manifold assembly
- Connection type: Mounting screw
- Connection size: #2-56 x 3/16″ screw, socket head cap
- For media type: gas
- Industry applications: Portable oxygen concentrators, ventilators, patient monitors
- Respiratory tract
- Patient monitors
- Patient treatment
- Very low power consumption of typically 1 watt allows for portability and low power management, increasing battery life or reducing the size of the power supply or battery
- Low profile simplifies assembly and eliminates cassette configurations that require complex and expensive machining
- Delivers consistent performance on every valve
- Complies with REACH, RoHS, ISO 15001, IP65 and CE
- Ventilators
- Portable oxygen concentrators
- Volumetric flow control
- Pulse dose control
