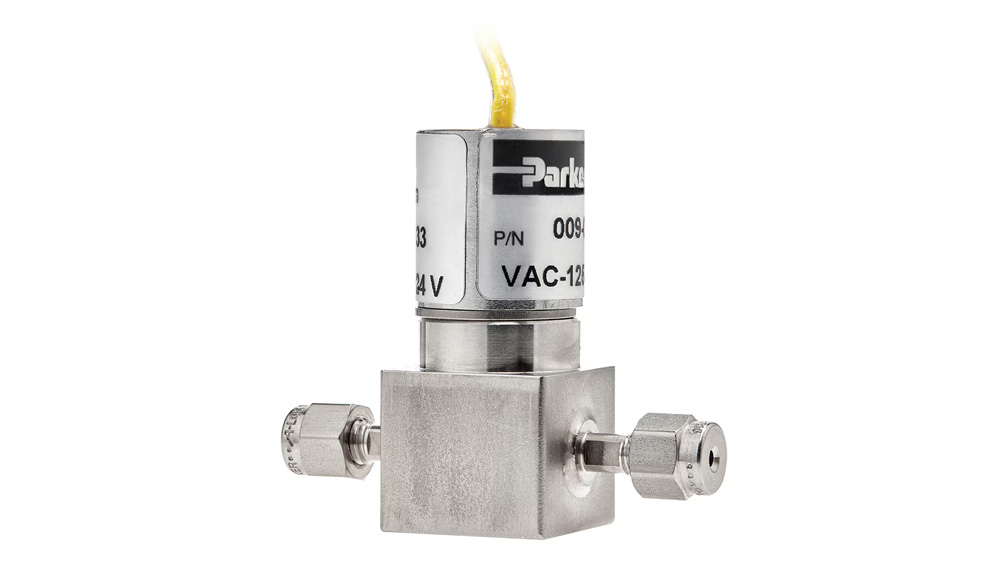

Series 9 - Miniature valve for calibration
The Series 9 solenoid valve offers extreme pressure capacity, low leakage performance and wide operating temperature ranges in an exceptionally compact design.
Designed for superior precision control in both gas and liquid analysis, the Series 9 combines high-speed actuation, extremely low leak rates, high flow capacity and excellent high-temperature performance.
Despite its small size, this robust valve offers exceptional repeatability and long-term durability. Its corrosion-resistant, passivated stainless steel construction ensures reliable operation even in demanding environments.
- Flow rate: Up to 130 SLPM
- Maximum flow rate: 130 SLPM
- Vacuum to pressure range: 1×10-5 dry to 100 psi (6.89 bar) up to 1250 psi (86.2 bar)
- Maximum operating pressure: 1250 psi, 86.2 bar
- Orifice size: 0.030, 0.060, 0.116 inches / 0.76, 1.52, 2.95 mm
- Maximum operating temperature: 105 °C, 221 °F
- Minimum operating temperature: 4 °C, 40 °F
- Function: 2-way normally closed (NC), 3-way universal
- Valve type: Miniature calibration valve
- Activation type: Solenoid
- Type of operation: Electronic
- Control method: Current or voltage
- Power consumption: 2.5 or 4.2 watts
- Tension: 12 or 24 VDC
- Electrical connection: 12” (305 mm) cable conductor
- Housing materials: 316 stainless steel
- Sealing material: FKM or Vespel
- Length: 25.4 to 48.8 mm (1.0 to 1.92 inches)
- Width: 16.00 to 19.05 mm (0.63 to 0.75 inches)
- Height: 41.66 to 55.37 mm (1.64 to 2.18 inches)
- Weight: 87.9 g, 3.1 oz
- Response time: < 6 ms when cycling (depending on orifice size)
- Leakage rate: 1 x 10-7 atm cc/sec helium
- Installation type: Mounting screw
- Connection type: Threaded port connections or A-LOK® compression couplings
- Connection size: 1/16” (1.6 mm), 1/8” (3.2 mm) A-LOK®; 1/8” FNPT; 1/4”-28 UNF
- For liquid type: Gases and liquids
- Industrial uses: Calibration gas control for mass spectrometers, gas chromatography, process analysis of gas, high pressure gas control
- Analytical chemistry
- Clinical diagnostics
- Process analysis of liquids
- High pressure fluid control
- Radioactive liquids in medical imaging
- Cooling circuits
- Gas chromatography
- Process analysis of gas and liquid
- High pressure gas control
- Smallest footprint in its class
- 100 % duty cycle at ambient temperatures up to (105 °C)
- High speed with response times of less than 6 ms eliminates delays in the system
- 100 % tested for leakage density 1 x 10-8 atm cc/sec helium
- Pressure up to 1250 PSI (86.2 bar)
- Available with a variety of couplings, orifices, seals and voltages to suit your application
- Configurations available for handling corrosive gases
- Free of hydrocarbons and lubricants
- RoHS compliant
