R9 Valve - 9 mm miniature isolation valve with diaphragm

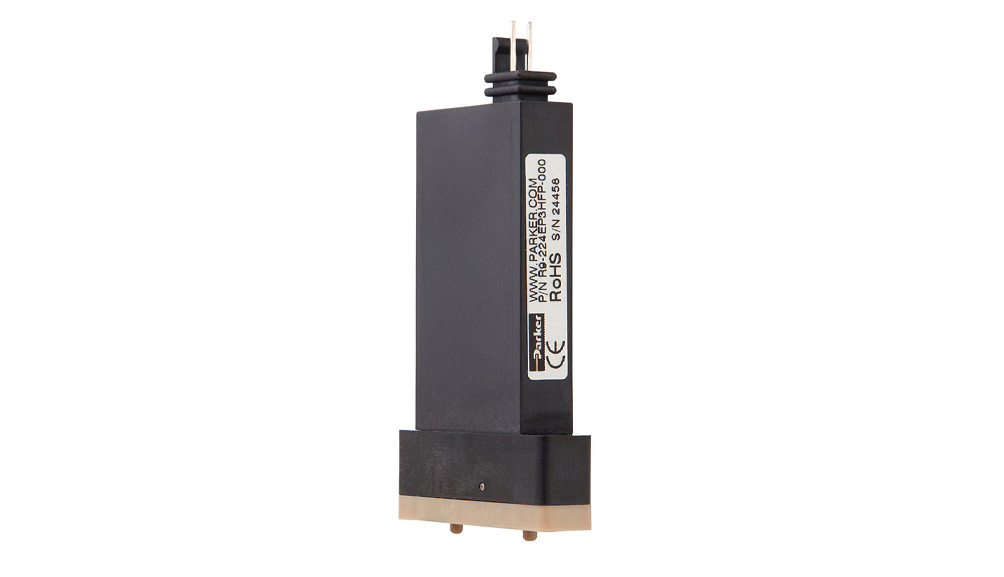

The Parker R9 Miniature Diaphragm Compact Series consists of 2-way and 3-way, 9 mm inert rocker valves. They are designed to provide the same fluid flow as a traditional 16mm valve, but with significantly less space requirements.
Despite its compact size, the R9 can handle pressures up to 100 psi (6.9 bar) and offers exceptional performance for its size.
With a 44 % reduction in width compared to larger valves, the R9 delivers high flow, low carryover and strong resistance to particulates and crystallization. This makes it exceptionally well suited for demanding fluid handling applications in both current and next generation laboratory and portable instruments.
- Flow rate: Up to 1000 sccm
- Maximum flow rate1000 sccm
- Maximum operating pressure100 psi, 6.89 bar
- Vacuum to pressure range: Vacuum to nominal pressure (depending on opening)
- Opening size: 0.030, 0.061 inch, 0.76, 1.55 mm
- Maximum operating temperature122 °F, 50 °C
- Minimum operating temperature32 °F, 0 °C
- Function: 2-way normally closed (NC), 3-way universal
- Valve type: Diaphragm rocker valve
- Cycles per lifetime10 million
- Activation type: Solenoid
- Type of operation: Electronic
- Management method: Press and hold tension
- Power consumption: 1.1, 1.2, 1.8 watts
- Input voltage12, 24 VDC
- Electrical connection: 2.54 mm pins, 18″ wires
- Body materialPEEK
- Sealing material: EPDM or FFKM
- Length: 2.71 inches, 68.8 mm
- Width: 0.34 inch, 8.7 mm
- Height: 1.46 inches, 37 mm
- Weight: 1.35 oz, 38.4 g
- Response time< 18 ms max cycle
- Leakage rate: Bubbles
- Mounting type: Mounting screws
- Connection type: Manifold surface seal or threaded port connections
- Connection size: Manifold surface, 1/4-28 ports or M6 ports
- For liquid type: Liquids
- Industrial application: Clinical diagnostics, analytical chemistry, agent detection, environmental monitoring, sampling, reagent addition, flow control, washing, waste
- Clinical diagnostics
- Analytical chemistry
- Agent detection
- Environmental monitoring
- High pressure options available up to 100 PSI (6.9 bar)
- Easy mounting on 9 mm center distance from side to side, allowing dispensing over 96-hole microplates
- Low unswept volume to minimize transmission
- Particle and crystallization resistant
- 100 % tested leakage rate ensures a leak-proof seal on every valve
- CE, REACH and RoHS compliant
- Sampling, washing and waste
- Addition of reagent
- Flow control
- Instruments for clinical diagnostics
- Hematology
- Automatic slide colorizers
- DNA/RNA synthesis
