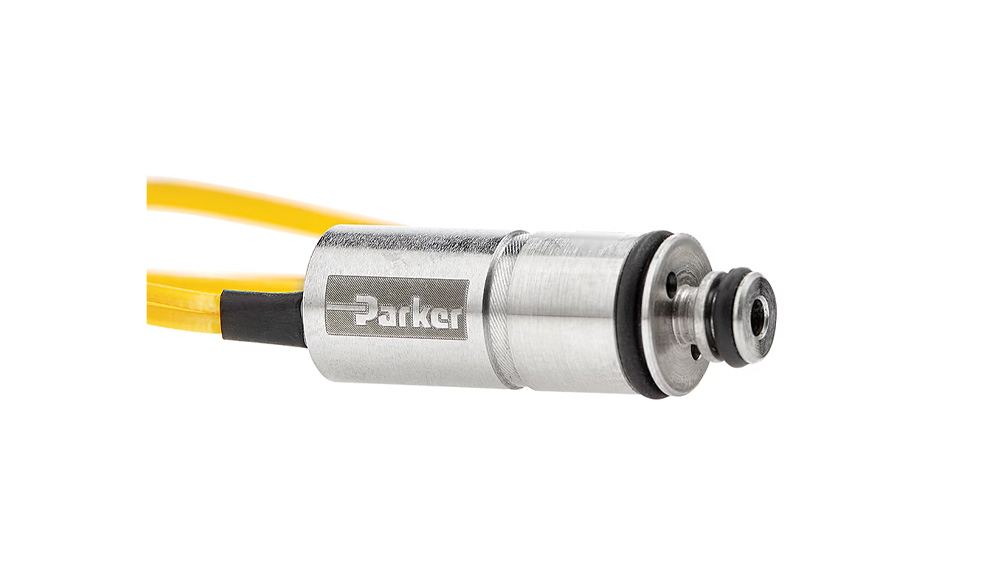

C7 - Miniature valve for liquids (Cartridge)

The Parker C7 series is the smallest series of cartridge solenoid valves in our range, with a compact diameter of 7 mm.

Designed for fast and reliable performance in life science applications, the C7 series combines miniature size, light weight and low power consumption with high flow repeatability and fast response times.

Despite their small size, C7 valves have exceptional durability with a lifetime of up to 130 million cycles.

The series is manifold mounted and available in 2-way normally closed configurations.

Parker Hannifin
Request offer
Product Overview
Product specification
  • Flow rate: Up to 429 cm3
  • Maximum flow rate: 429 cm3/min
  • Maximum operating pressure: Up to 145 psi, 10 bar
  • Opening size: 0.3, 0.5, 0.8, 1.0 mm
  • Maximum operating temperature122 °F, 50 °C
  • Minimum operating temperature32 °F, 0 °C
  • Function: 2-way, normally closed (NC)
  • Port connection: Cartridge sealing
  • Cycles per lifetime130 million
  • Activation type: Solenoid
  • Type of operation: Electronic
  • Management method: Press and hold, tension
  • Power consumption: 0.5, 0.6, 0.85, 1.0, 1.2 watts typical
  • Electrical connection: 80 mm (3.2 inches) flying leads
  • Body and spindle base materials: Stainless steel 300 and 400 series
  • Height: 20 mm (0.79 inches)
  • Width: 0.28 inch, 7 mm
  • Weight: 0.11 oz, 3.1 g
  • Mounting type: Manifold
  • For liquid type: Liquids
  • Industrial application: Reagent addition, washing, waste, flow control, large format inkjet system
Markets
  • Analytical chemistry
  • Clinical diagnostics
  • Environmental monitoring
  • Pressure
Features/benefits:
  • Various orifice sizes with pressures up to 145 PSI (10 bar)
  • Floating frictionless piston enables reliable and repeatable operation up to 130 million cycles
  • Low power design reduces heat and energy consumption
  • Cartridge configuration allows compact integration that saves space and weight
  • Simple mechanical fastening prevents the valve from loosening due to vibrations or pressure surges.
  • RoHS and REACH compliant
Areas of use
  • Addition of reagent
  • Laundry
  • Waste
  • Flow control
  • Large inkjet systems
Request for quotation

The request for quotation will be processed by our subsidiary Aldax AB (info@aldax.se)

"*"indicates required fields

Terms and conditions*
Downloadable material
C Series Catalog
catalog
-
English
Liquid Control Valve Catalog
catalog
-
English
Point of Care Instrument
More information
-
English

Related products

Series 18
Miniature valves

Series 18 - Miniature multi-channel inert PTFE distribution valve

Parker's 18 series of PTFE manifold isolation valves provide an inert liquid-touched surface for biocompatibility and aggressive fluids with fast multi-channel response times with precise fluid control. Parker Series 18 is designed for compact installation in multi-liquid systems. Available with multiple inlets and one outlet (or vice versa), Series 18 features all fluid-affected parts in PTFE. In the Series 18, piping and connections between separate valves have been eliminated and dead volume reduced. Repeatability and fast response time make the Series 18 ideal for accurate control of small percentages of low flow fluids.
Parker Hannifin
R9 Valve - valve
Miniature valves

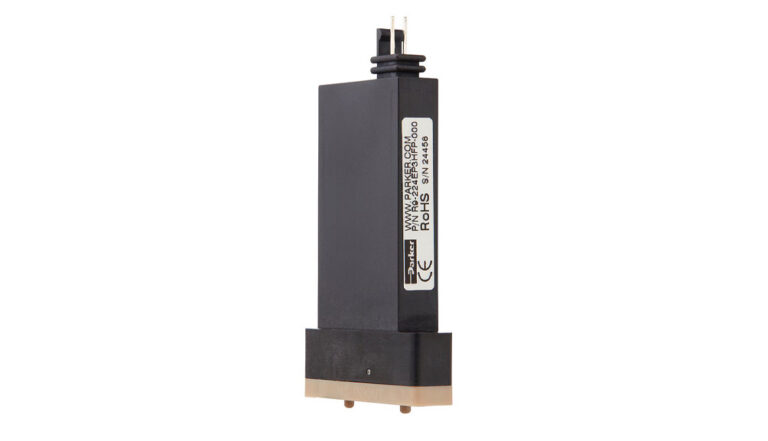

R9 Valve - 9 mm miniature isolation valve with diaphragm
