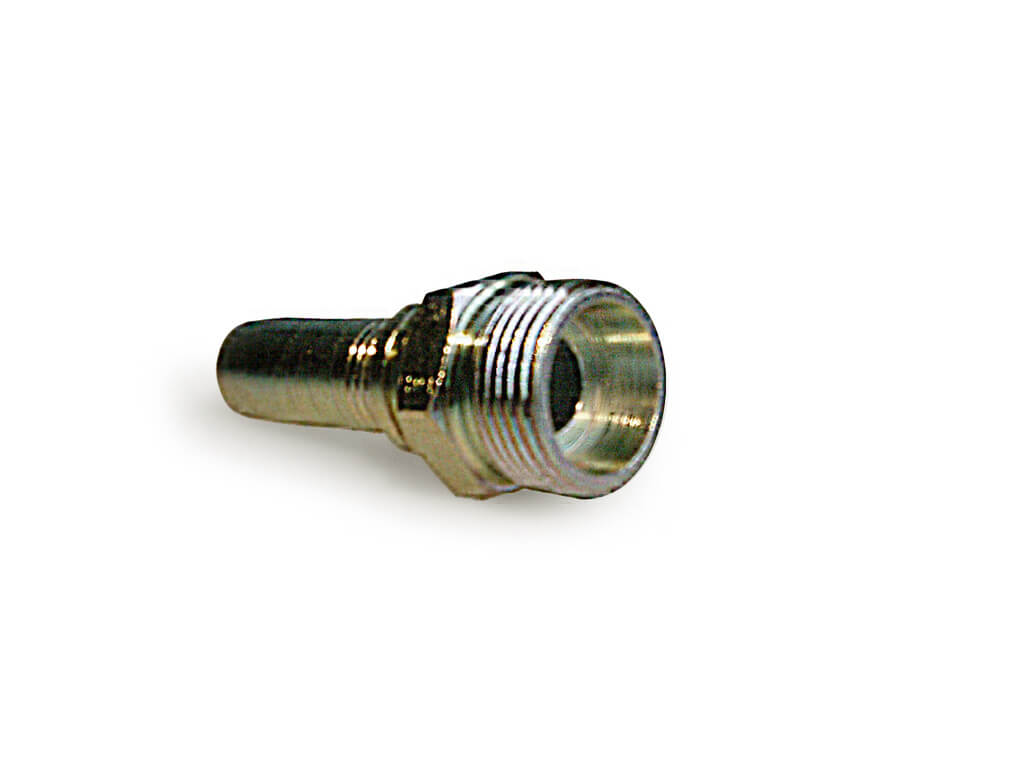

Nipple with external fixed R-thread
Nipple with external fixed R-thread for a robust and reliable connection in pipe systems. Seal: 24° cone

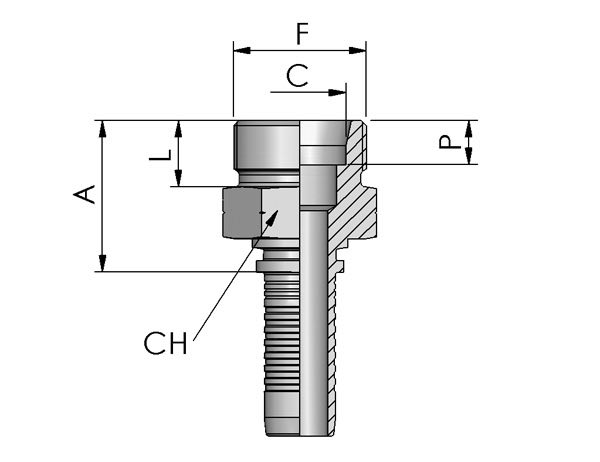

Dimensions according to the sketch are given in mm.
| Article Number | Thread (mm) | Slang ID inch | Hose DN (mm) | For pipes (mm) | P | CH | A | L | Availability | Price | Add to cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 4109-0312 | M12x1,5 | 3/16 | 5 | 6 | 7 | 12 | 20.7 | 10 | Login to see availability and prices | ||
| 4109-0412 | M12x1,5 | 1/4 | 6 | 6 | 7 | 12 | 20.9 | 10 | Login to see availability and prices | ||
| 4109-0414 | M14x1.5 | 1/4 | 6 | 8 | 7 | 14 | 21.9 | 10 | Login to see availability and prices | ||
| 4109-0416 | M16x1.5 | 1/4 | 6 | 10 | 7 | 17 | 22.9 | 11 | Login to see availability and prices | ||
| 4109-0516 | M16x1.5 | 5/16 | 8 | 10 | 7 | 17 | 22.9 | 11 | Login to see availability and prices | ||
| 4109-0518 | M18x1.5 | 5/16 | 8 | 10 | 7 | 19 | 23.9 | 11 | Login to see availability and prices | ||
| 4109-0616 | M16x1.5 | 3/8 | 10 | 12 | 7 | 17 | 23.5 | 11 | Login to see availability and prices | ||
| 4109-0618 | M18x1.5 | 3/8 | 10 | 15 | 7 | 19 | 24.5 | 11 | Login to see availability and prices | ||
| 4109-0622 | M22 x 1.5 | 3/8 | 10 | 15 | 7 | 22 | 25.5 | 12 | Login to see availability and prices | ||
| 4109-0822 | M22 x 1.5 | 1/2 | 12 | 15 | 7 | 22 | 26.1 | 12 | Login to see availability and prices | ||
| 4109-0826 | M26x1.5 | 1/2 | 12 | 18 | 7.5 | 27 | 27.1 | 12 | Login to see availability and prices | ||
| 4109-1026 | M26x1.5 | 5/8 | 16 | 18 | 7.5 | 27 | 27.1 | 12 | Login to see availability and prices | ||
| 4109-1230 | M30x2.0 | 3/4 | 19 | 22 | 7.5 | 30 | 30.1 | 14 | Login to see availability and prices | ||
| 4109-1636 | M36x2.0 | 1" | 25 | 28 | 7.5 | 36 | 32.1 | 14 | Login to see availability and prices | ||
| 4109-2045 | M45x2.0 | 1" 1/4 | 32 | 35 | 10.5 | 46 | 36.5 | 16 | Login to see availability and prices | ||
| 4109-2452 | M52x2,0 | 1" 1/2 | 38 | 42 | 11 | 55 | 39 | 16 | Login to see availability and prices | ||
