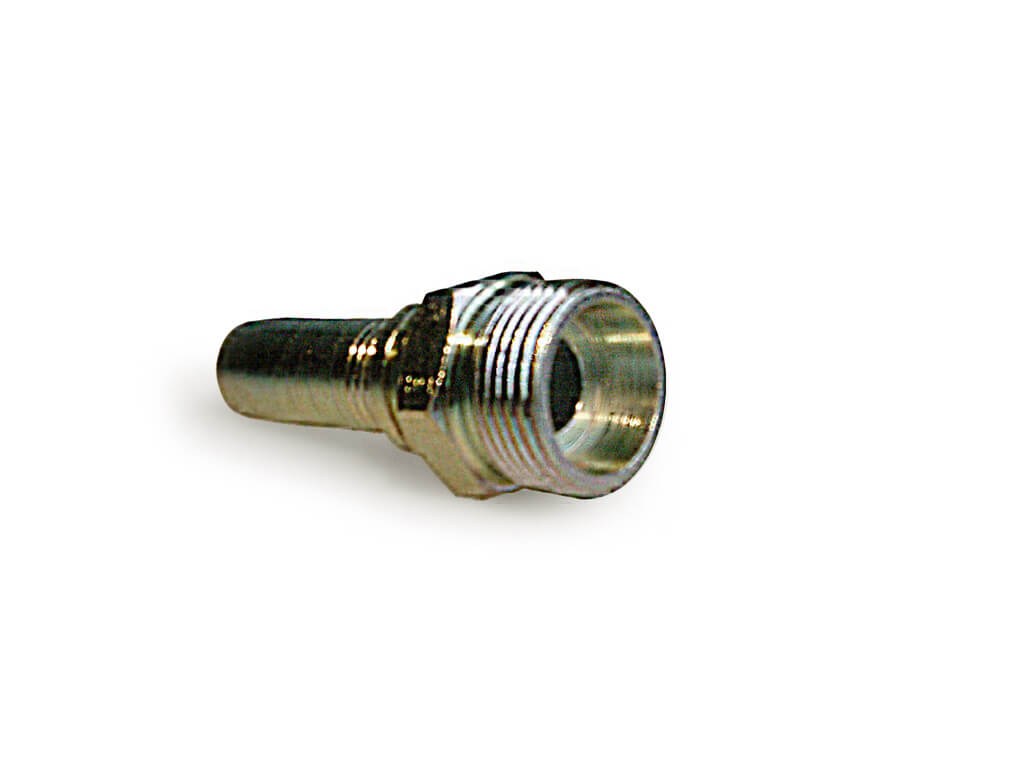

Nipple with 24° cone
Nipple with 24° cone, ideal for use as a press fitting, provides a safe and efficient connection in pipe systems.

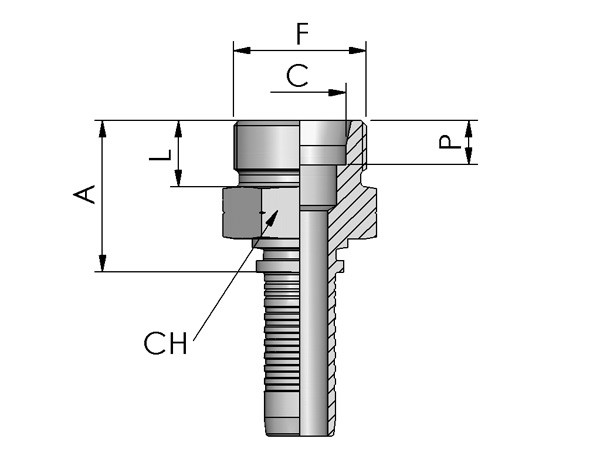

Dimensions according to the sketch are given in mm.
| Article Number | Thread (mm) | Slang ID inch | Hose DN (mm) | For pipes (mm) | P | CH | A | L | Availability | Price | Add to cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 4111-0414 | M14x1.5 | 1/4 | 6 | 6 | 7 | 14 | 23.9 | 12 | Login to see availability and prices | ||
| 4111-0416 | M16x1.5 | 1/4 | 6 | 8 | 7 | 17 | 26.9 | 12 | Login to see availability and prices | ||
| 4111-0418 | M18x1.5 | 1/4 | 6 | 10 | 7.5 | 19 | 26.9 | 12 | Login to see availability and prices | ||
| 4111-0520 | M20x1.5 | 5/16 | 8 | 12 | 7.5 | 22 | 28.9 | 12 | Login to see availability and prices | ||
| 4111-0618 | M18x1.5 | 3/8 | 10 | 10 | 7.5 | 19 | 27.5 | 12 | Login to see availability and prices | ||
| 4111-0620 | M20x1.5 | 3/8 | 10 | 12 | 7.5 | 22 | 29.5 | 12 | Login to see availability and prices | ||
| 4111-0622 | M22x1.5 | 3/8 | 10 | 14 | 8 | 22 | 31.5 | 14 | Login to see availability and prices | ||
| 4111-0824 | M24x1.5 | 1/2 | 12 | 16 | 8.5 | 24 | 32.1 | 14 | Login to see availability and prices | ||
| 4111-1030 | M30x2.0 | 5/8 | 16 | 20 | 10.5 | 30 | 36.1 | 16 | Login to see availability and prices | ||
| 4111-1230 | M30x2.0 | 3/4 | 19 | 20 | 10.5 | 30 | 37.1 | 16 | Login to see availability and prices | ||
| 4111-1236 | M36x2.0 | 3/4 | 19 | 25 | 12 | 36 | 41.1 | 18 | Login to see availability and prices | ||
| 4111-1636 | M36x2.0 | 1" | 25 | 25 | 12 | 36 | 42.1 | 18 | Login to see availability and prices | ||
| 4111-1642 | M42x2.0 | 1" | 25 | 30 | 13.5 | 46 | 44.1 | 20 | Login to see availability and prices | ||
| 4111-2052 | M52x2,0 | 1" 1/4 | 32 | 38 | 16 | 55 | 48.5 | 22 | Login to see availability and prices | ||
