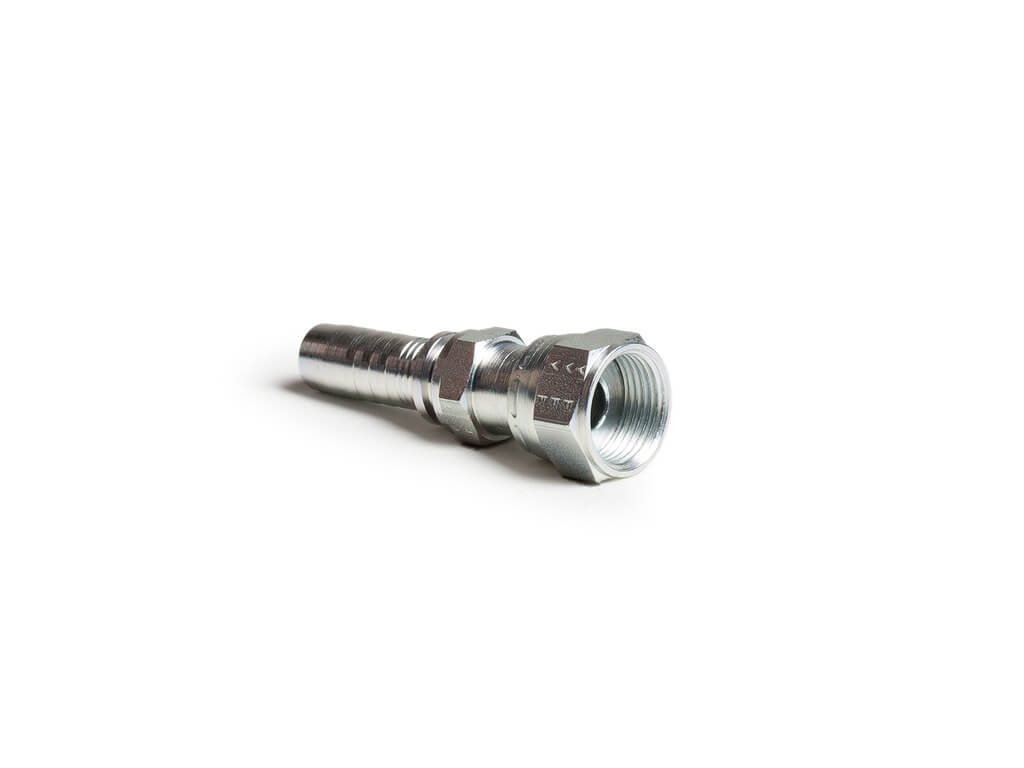

Nipple internal swivel ORFS
A flexible hydraulic coupling with swivel internal ORFS thread. It allows for easy installation and safe, leak-free connection in hydraulic systems.

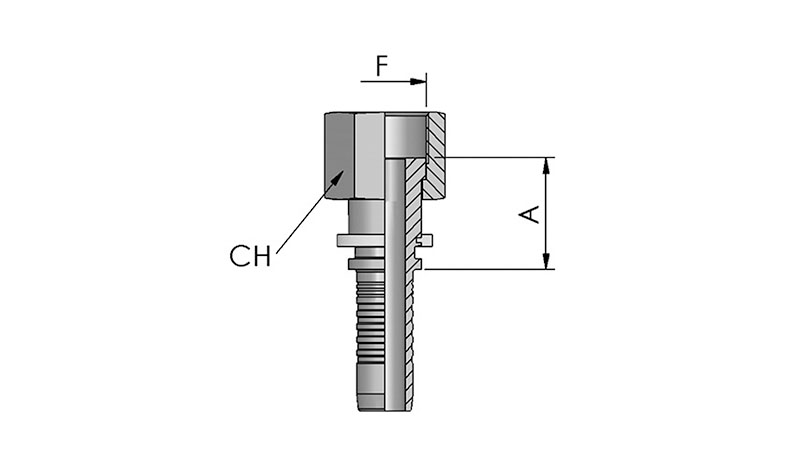

Dimensions according to the sketch are given in mm.
| Article Number | Thread inch (F) | Slang ID inch | Hose DN (mm) | CH | A | Availability | Price | Add to cart |
|---|---|---|---|---|---|---|---|---|
| 4161-0404 | 9/16 | 1/4 | 6 | 17 | 20,5 | Login to see availability and prices | ||
| 4161-0604 | 11/16 | 1/4 | 6 | 22 | 21,9 | Login to see availability and prices | ||
| 4161-0606 | 11/16 | 3/8 | 10 | 22 | 22 | Login to see availability and prices | ||
| 4161-0806 | 13/16 | 3/8 | 10 | 24 | 25 | Login to see availability and prices | ||
| 4161-0808 | 13/16 | 1/2 | 12 | 24 | 25 | Login to see availability and prices | ||
| 4161-1008 | 1" | 1/2 | 12 | 24 | 25 | Login to see availability and prices | ||
| 4161-1010 | 1"3/16 | 5/8 | 16 | 36 | 32,1 | Login to see availability and prices | ||
| 4161-1208 | 1" | 1/2 | 12 | 30 | 29,9 | Login to see availability and prices | ||
| 4161-1210 | 1"3/16 | 5/8 | 16 | 36 | 32,1 | Login to see availability and prices | ||
| 4161-1212 | 1"3/16 | 3/4 | 19 | 36 | 33 | Login to see availability and prices | ||
| 4161-1612 | 1"7/16 | 3/4 | 19 | 41 | 33,6 | Login to see availability and prices | ||
