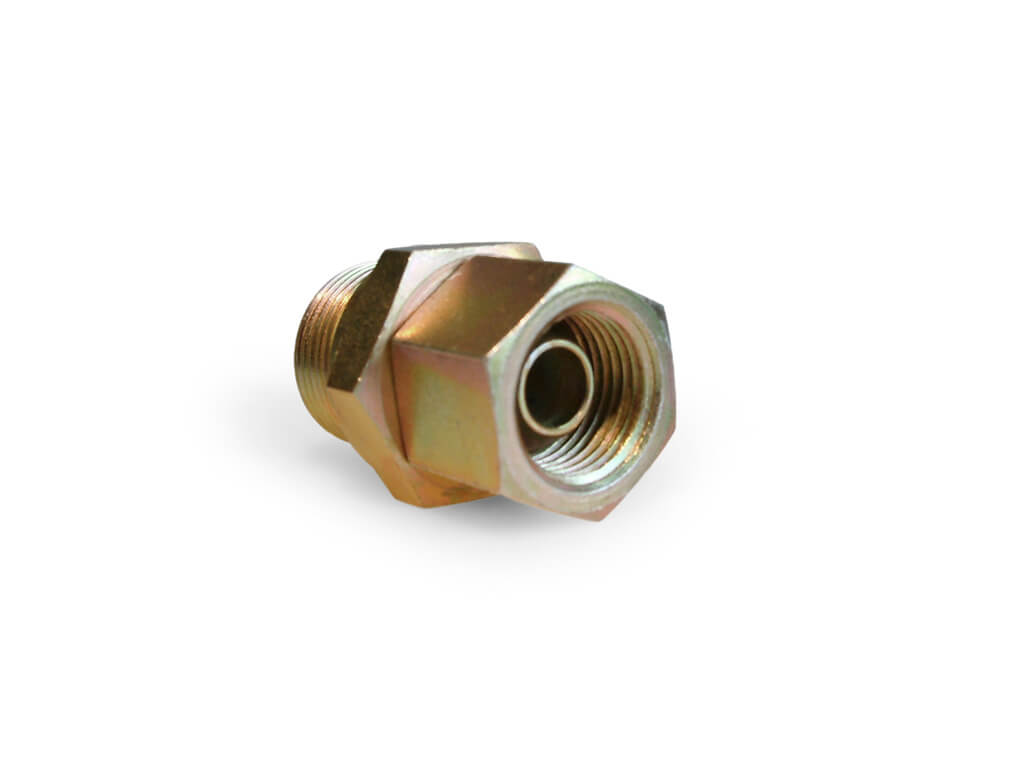

Adapter BSPP X BSP, 60° cone
The BSPP x BSP adapter with 60° cone is a hydraulic coupling suitable for use in construction and agricultural machinery, among others. It ensures a reliable and leak-free connection in demanding environments.

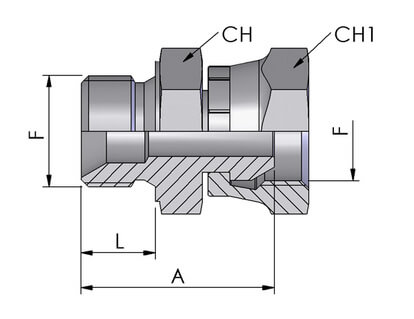

Dimensions according to the sketch are given in mm.
| Article Number | Thread BSP (F) | CH | CH1 | A | L | Availability | Price | Add to cart |
|---|---|---|---|---|---|---|---|---|
| 4349-0202 | R 1/8 | 14 | 15 | 26.2 | 9.6 | Login to see availability and prices | ||
| 4349-0404 | R 1/4 | 19 | 19 | 29.4 | 11.2 | Login to see availability and prices | ||
| 4349-0606 | R 3/8 | 22 | 22 | 31.5 | 12 | Login to see availability and prices | ||
| 4349-0808 | R 1/2 | 27 | 27 | 38.2 | 14.8 | Login to see availability and prices | ||
| 4349-1010 | R 5/8 | 30 | 30 | 39.5 | 16 | Login to see availability and prices | ||
| 4349-1212 | R 3/4 | 32 | 32 | 43 | 17 | Login to see availability and prices | ||
| 4349-1616 | R 1" | 41 | 38 | 46.9 | 19 | Login to see availability and prices | ||
| 4349-2020 | R 1" 1/4 | 50 | 50 | 56 | 20 | Login to see availability and prices | ||
| 4349-2424 | R 1" 1/4 | 55 | 55 | 58.5 | 22 | Login to see availability and prices | ||
| 4349-3232 | R 2" | 70 | 70 | 62.5 | 24 | Login to see availability and prices | ||
