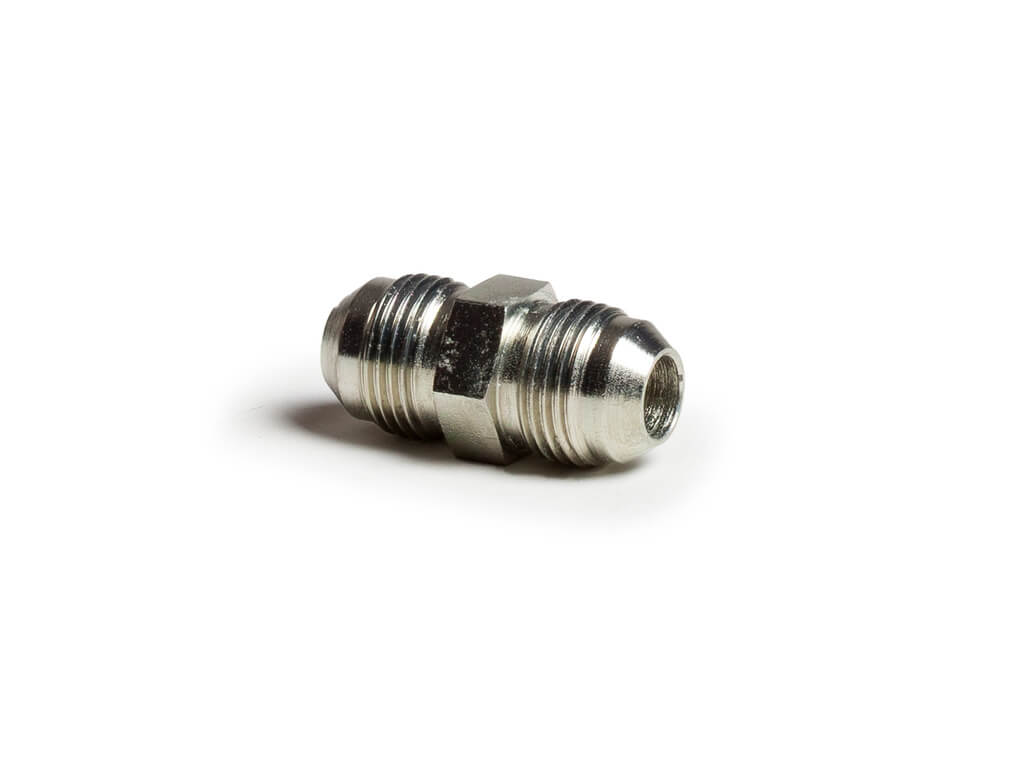

Straight splice coupling JIC
Straight splice coupling JIC has male threads on both sides and a 37° cone for secure sealing. It is used in hydraulic systems and is available in different sizes.

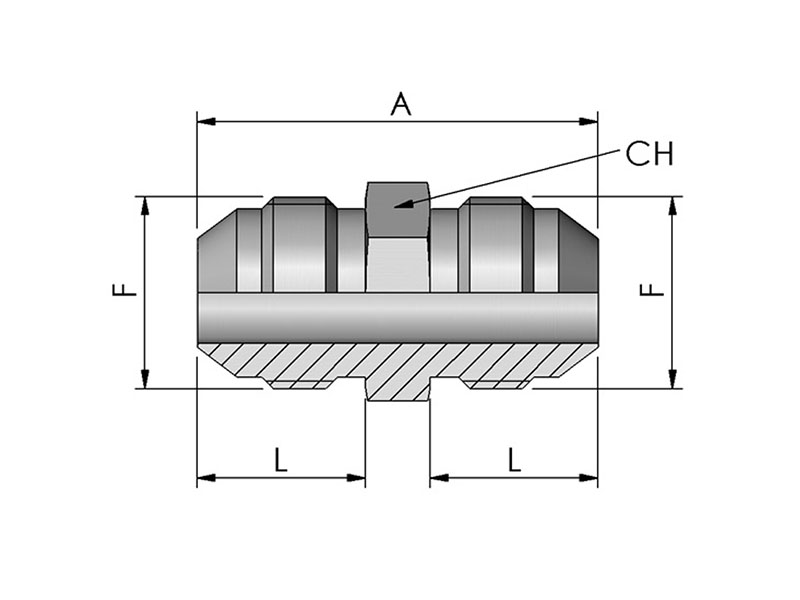

Dimensions according to the sketch are given in mm.
| Article Number | Thread JIC (F) | CH | A | L | Availability | Price | Add to cart |
|---|---|---|---|---|---|---|---|
| 4318-0404 | 7/16 | 13 | 34.8 | 14 | Login to see availability and prices | ||
| 4318-0505 | 1/2 | 14 | 35.8 | 14 | Login to see availability and prices | ||
| 4318-0606 | 9/16 | 16 | 41.1 | 14.1 | Login to see availability and prices | ||
| 4318-0808 | 3/4 | 19 | 47.8 | 16.7 | Login to see availability and prices | ||
| 4318-1010 | 7/8 | 24 | 47.8 | 19.3 | Login to see availability and prices | ||
| 4318-1212 | 1"1/16 | 27 | 54.9 | 21.9 | Login to see availability and prices | ||
| 4318-1616 | 1"5/16 | 36 | 27.2 | 23.1 | Login to see availability and prices | ||
| 4318-2020 | 1"5/8 | 46 | 61.7 | 24.3 | Login to see availability and prices | ||
| 4318-2424 | 1"7/8 | 50 | 69.8 | 27.5 | Login to see availability and prices | ||
