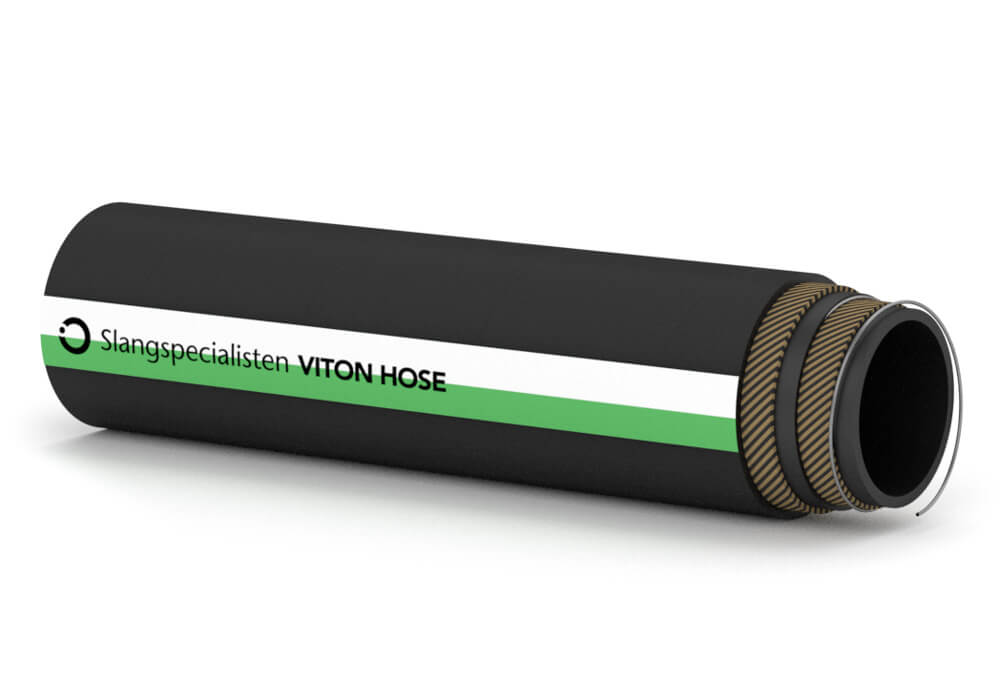

Viton hose for suction & pressure EN 12115
Viton hose suitable as suction and pressure hose. It is resistant to most chemicals such as strong acids, chlorinated hydrocarbons, hot petroleum products, etc.
- Inner tube: Black viton.
- Reinforcement: Polyester reinforced, steel spiral and antistatic copper braid.
- Outer tube: Neoprene rubber (CR)
- Temperature range: -25°C - +120°C.
- Working pressure (bar): 16
- Burst pressure (bar): 64
| Article Number | ID (mm) | Thickness of goods (mm) | OD (mm) | Bending radius | Manufacturing length (m) | Availability | Price | Add to cart |
|---|---|---|---|---|---|---|---|---|
| 1203-0013 | 13 | 6 | 25 | 105 | 40 | Login to see availability and prices | ||
| 1203-0016 | 16 | 6 | 28 | 115 | 40 | Login to see availability and prices | ||
| 1203-0019 | 19 | 7 | 31 | 125 | 40 | Login to see availability and prices | ||
| 1203-0025 | 25 | 7 | 37 | 150 | 40 | Login to see availability and prices | ||
| 1203-0032 | 32 | 7 | 44 | 175 | 40 | Login to see availability and prices | ||
| 1203-0038 | 38 | 7 | 51 | 225 | 40 | Login to see availability and prices | ||
| 1203-0050 | 51 | 7.5 | 67 | 275 | 40 | Login to see availability and prices | ||
| 1203-0063 | 63.5 | 8 | 79.5 | 350 | 40 | Login to see availability and prices | ||
| 1203-0075 | 76 | 9 | 92 | 400 | 40 | Login to see availability and prices | ||
| 1203-0100 | 102 | 9 | 118 | 550 | 40 | Login to see availability and prices | ||
