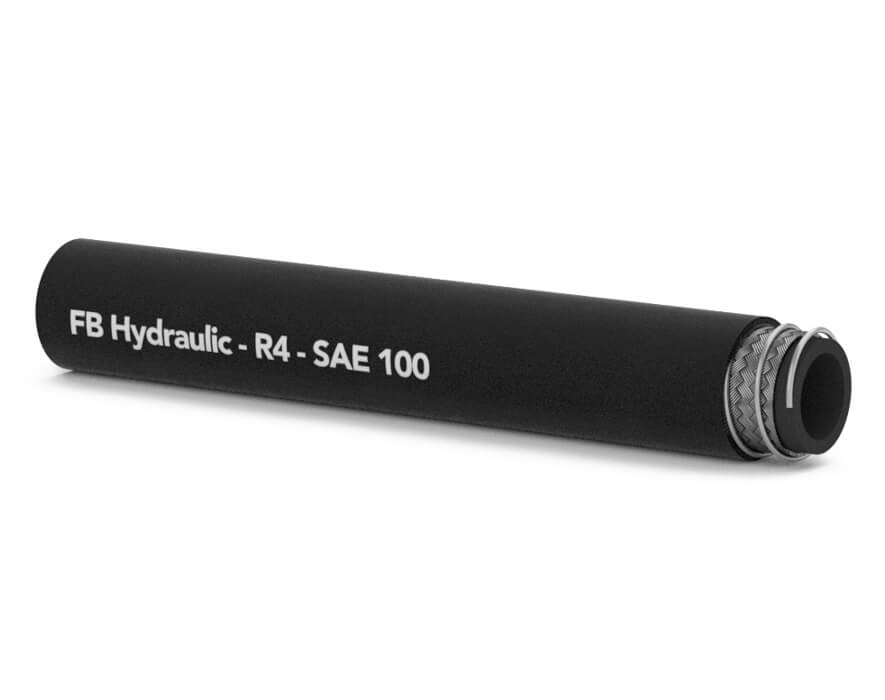

Hydraulic hose SAE 100 R4
In hydraulic systems for the transportation of hydraulic fluids of mineral oil and glycol base type, vegetable and mineral lubricating oils, crude oil, cooling water and compressed air. The hose is not suitable for the transportation of ester-base type hydraulic fluids.
- Inner tube: Synthetic rubber. Resistant to hydraulic fluids.
- Reinforcement: High-strength textile fibers, spiral steel wire.
- Outer tube: Synthetic rubber. Resistant to ozone.
- Temperature range: -40°C - +100°C.
| Article Number | ID (mm) | ID (inch) | OD (mm) | Working pressure (bar) | Bursting pressure (bar) | Bending radius | Availability | Price | Add to cart (m) |
|---|---|---|---|---|---|---|---|---|---|
| 1815-0012 | 19 | 3/4 | 29 | 21 | 84 | 95 | Login to see availability and prices | ||
| 1815-0016 | 25 | 1 | 35.4 | 17 | 68 | 125 | Login to see availability and prices | ||
| 1815-0020 | 32 | 1 1/4 | 41.8 | 14 | 56 | 160 | Login to see availability and prices | ||
| 1815-0024 | 38 | 1 1/2 | 49 | 10 | 40 | 200 | Login to see availability and prices | ||
