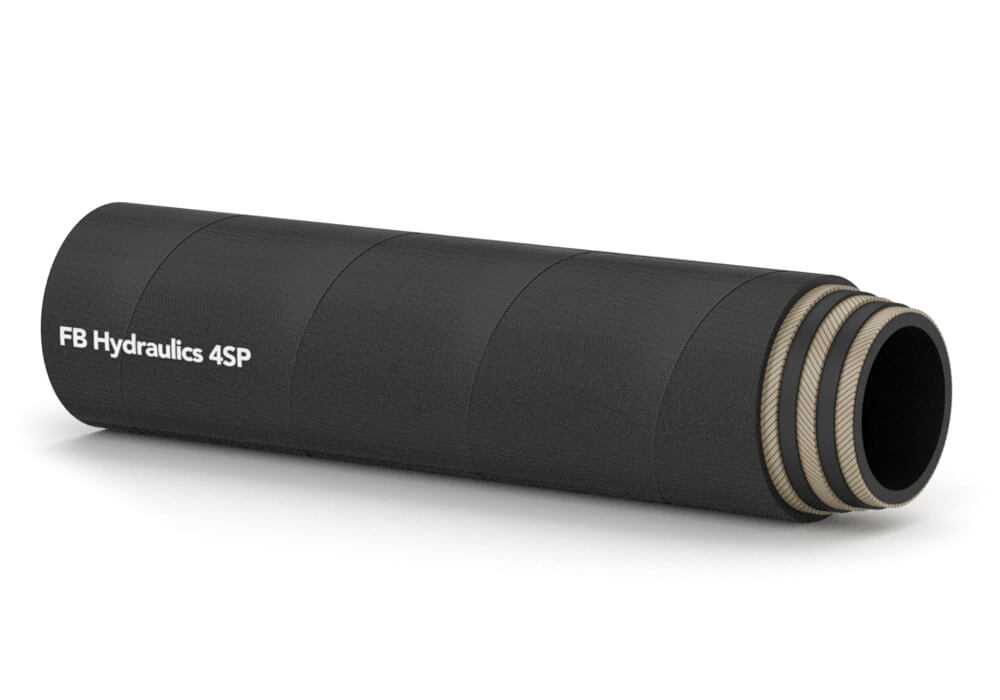

Hydraulic hose EN 856-4SP SAE 100 R9R
Hydraulic hose especially suitable in hydraulic systems with high pressure peaks and difficult operating conditions. For transportation of hydraulic fluids of mineral oil and glycol base type. The hose is not suitable for the transportation of ester-base type hydraulic fluids.
- Inner tube: Black smooth oil-resistant synthetic rubber.
- Reinforcement: It is reinforced with four spirally wound steel wire rope inserts.
- Outer tube: Black smooth oil-resistant synthetic rubber.
- Characteristics: The hose has good abrasion and weather resistance. Pressed couplings shall be used for the hose. Before installation, the hose must be scaled externally. MSHA approved.
- Temperature range: -40°C - +100°C.
| Article Number | ID (mm) | ID (inch) | OD (mm) | Working pressure (bar) | Bursting pressure (bar) | Bending radius | YD braid (mm) | Availability | Price | Add to cart |
|---|---|---|---|---|---|---|---|---|---|---|
| 1811-0006 | 10 | 3/8 | 21.1 | 445 | 1780 | 180 | 17.4 | Login to see availability and prices | ||
| 1811-0008 | 12 | 1/2 | 24.2 | 425 | 1700 | 230 | 20.6 | Login to see availability and prices | ||
| 1811-0010 | 16 | 5/8 | 27.9 | 425 | 1560 | 250 | 24.2 | Login to see availability and prices | ||
| 1811-0012 | 19 | 3/4 | 32 | 350 | 1540 | 300 | 27.9 | Login to see availability and prices | ||
| 1811-0016 | 25 | 1 | 38.9 | 320 | 1280 | 340 | 35.1 | Login to see availability and prices | ||
| 1811-0020 | 31 | 1 1/4 | 50.5 | 210 | 960 | 460 | 45.9 | Login to see availability and prices | ||
| 1811-0024 | 38 | 1 1/2 | 56.8 | 185 | 840 | 560 | 52.1 | Login to see availability and prices | ||
