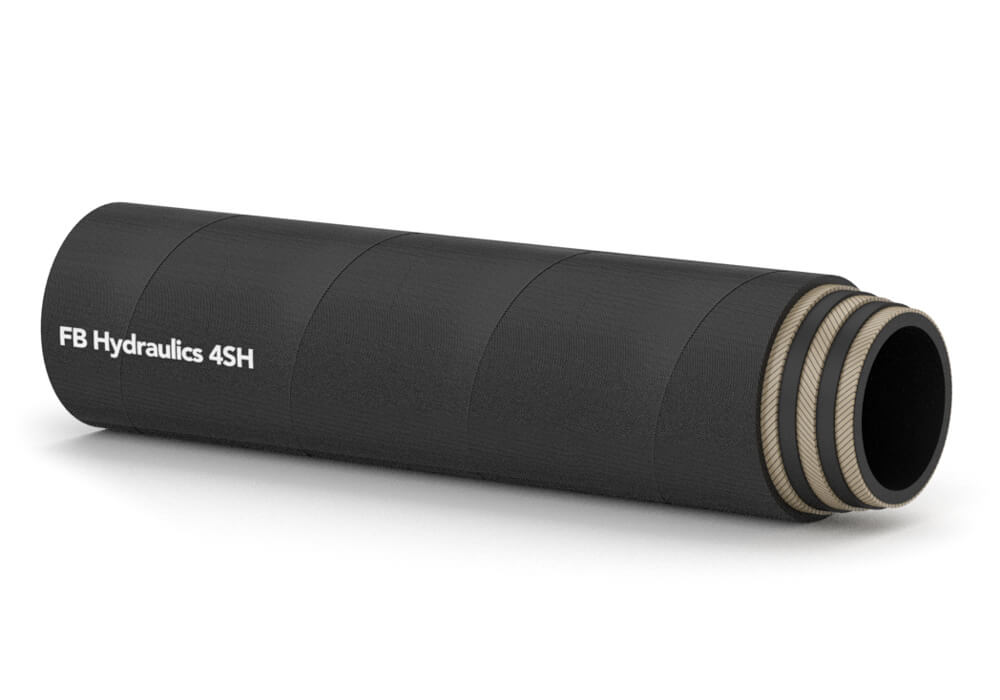

Hydraulic hose EN 856-4SH
Hydraulic hose EN 856-4SH suitable for vegetable, synthetic mineral oils, water and glycol. Ester-based oils max 100 °C.
- Inner tube: Synthetic rubber.
- Reinforcement: Four spiral wound steel inserts.
- Outer tube: Flame, ozone, weather and abrasion resistant rubber. MSHA approved.
- Temperature range: -40°C - +100°C.
| Article Number | ID (mm) | Thickness of goods (mm) | OD (mm) | Working pressure (bar) | Bursting pressure (bar) | Bending radius | Manufacturing length (m) | Availability | Price | Add to cart |
|---|---|---|---|---|---|---|---|---|---|---|
| 1813-0012 | 19 | 6.5 | 31.9 | 430 | 1720 | 210 | 50 | Login to see availability and prices | ||
| 1813-0016 | 25 | 6.4 | 38.7 | 400 | 1600 | 220 | 50 | Login to see availability and prices | ||
| 1813-0020 | 31 | 6.6 | 45.2 | 360 | 1440 | 240 | 50 | Login to see availability and prices | ||
