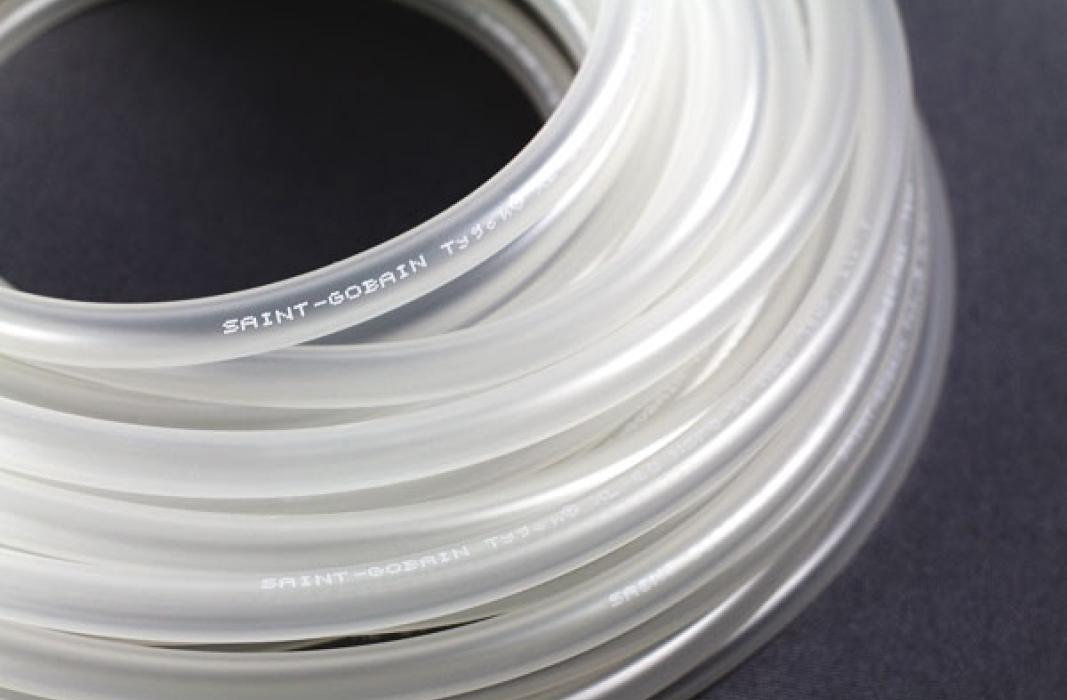

Tygon® XL-60
Flexible feeding hose for food and beverages.
Tygon® XL-60 clear peristaltic pump tubing from Saint-Gobain is ideal for food and beverage dispensing. It can maintain pump life for more than 500 hours and, with a durometer hardness of Shore A 60, it is extremely flexible and durable - reducing downtime due to pump hose failure. This high-performance hose is an excellent alternative to silicone and PVC when longer pump life is required.
Tygon® XL-60 is resistant to ozone, oxygen and sunlight aging. The hose is also resistant to chemicals and a wide range of liquids, including acids and bases. It remains flexible at -40°F and is temperature resistant up to 250°F. Its translucent color makes it easy to monitor the fluids flowing through it.
- Hardness (Shore A): 60
- Tensile strength: 1630 psi (11.2 MPa)
- Breakage strain: 770 %
- Tear strength: 190 lb-f/in (33.3 kN/m)
- Density (Specific gravity): 0.9
- Water absorption: 0.07 %
- Permanent compression (compression set): 55 %
- Temperature range: -66 °C to +121 °C (-87 °F to +250 °F)
- Impact rupture temperature: -66 °C (-87 °F)
- Elongation stress at 300 % extension: 555 psi (3.8 MPa)
- Long lifetime in peristaltic pumps
- Temperature resistant up to 121 °C (250 °F)
- Low level of extractables
- Alternatives to PVC
- Clear and flexible
- Custom colors are available
- Peristaltic pumps
- Transfer of food and drink
| Article Number | ID (mm) | OD (mm) | Wall thickness (mm) | Availability | Price | Add to cart |
|---|---|---|---|---|---|---|
| AN800003 | 1.59 | 4.76 | 1.59 | Login to see availability and prices | ||
| AN800007 | 3.18 | 6.35 | 1.59 | Login to see availability and prices | ||
| AN800012 | 4.76 | 7.94 | 1.59 | Login to see availability and prices | ||
| AN800017 | 6.35 | 9.53 | 1.59 | Login to see availability and prices | ||
| AN800022 | 7.94 | 11.11 | 1.59 | Login to see availability and prices | ||
| AN800027 | 9.53 | 12.70 | 1.59 | Login to see availability and prices | ||
| AN800038 | 12.70 | 19.05 | 3.18 | Login to see availability and prices | ||
| AN800046 | 15.88 | 22.23 | 3.18 | Login to see availability and prices | ||
| AN800053 | 19.05 | 25.40 | 3.18 | Login to see availability and prices | ||
