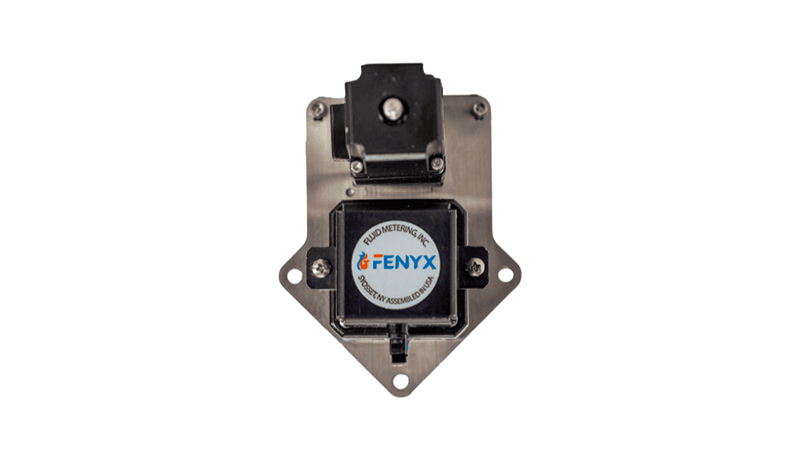

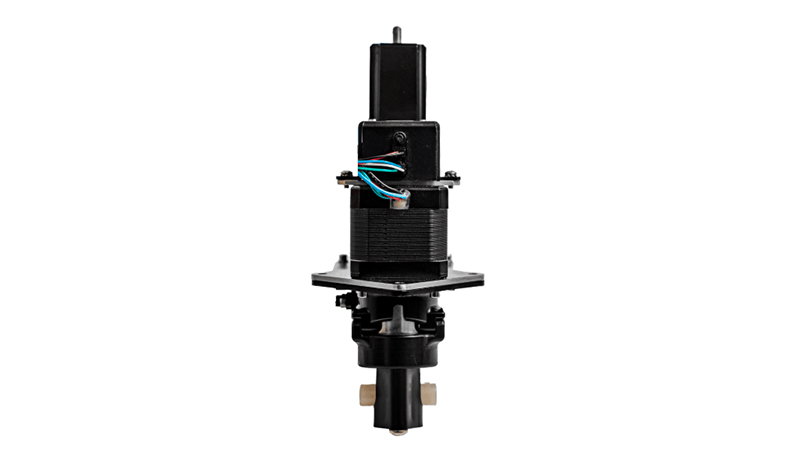

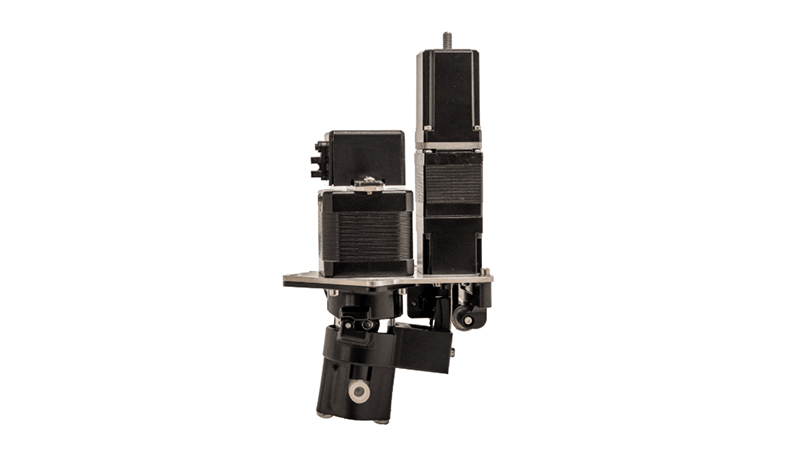

FENYX®- Variable displacement pump
FENYX® is a variable dispense pump that combines the functions of priming, flushing and dispensing in a single unit, providing accurate and repeatable dispense volumes of 1 to 400 µL in a small, lightweight package.
Den innovativa, lågprofilerade designen erbjuder oöverträffad noggrannhet och precision med en elektrisk och mekanisk uppgradering som kan dispensera flera volymer med samma pump. FENYX variabel dispenseringspump finns i tre konfigurerbara alternativ1 och är en idealisk lösning för OEM-marknaderna inom medicin och biovetenskap.
FENYX-100, FENYX-200, FENYX-400
Engine type
- Rotationsmotor: NEMA 17 (43 mm)
- Linjärmotor: NEMA 11 (28 mm)
Motorhastighet
- Rotationsmotor: Upp till 1000 rpm
- Linjärmotor: Upp till 1900 rpm
Elektriska (märkström)
- Rotationsmotor: 2,0 A
- Linjärmotor: 1,0 A
Operating temperature range
- 0 °C till 50 °C (32 °F till 122 °F)
Driftstryckområde
- 0–30 psig (0–2,1 bar)2
FENYX Variable Dispense-pumpen erbjuder kontaktlösa funktioner ned till 4 µL. Eliminerar behovet av byte och rengöring av sondspetsar, vilket resulterar i strömlinjeformad noggrannhet, effektivitet och precision.
The request for quotation will be processed by our subsidiary Aldax AB (info@aldax.se)
"*"indicates required fields
| Article Number | Doseringsvolymintervall (μl/varv) | Flow rate range (ml/min) | Availability | Price | Add to cart |
|---|---|---|---|---|---|
| FENYX-100 | 0.75-110 μl/rev | 0.00075-110 mL/min | Login to see availability and prices | ||
| FENYX-200 | 2-200 μl/rev | 0.002-200 mL/min | Login to see availability and prices | ||
| FENYX-400 | 4-400 μl/rev | 0.004-400 mL/min | Login to see availability and prices | ||
